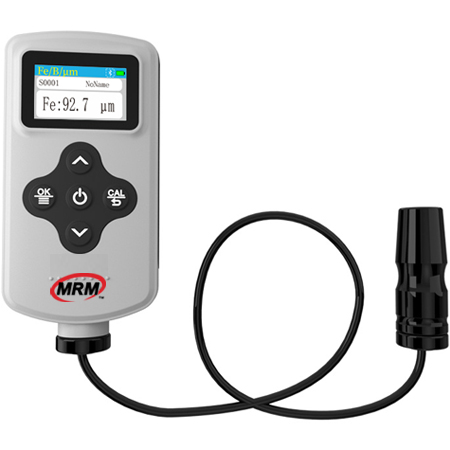

MRM-YT8300 Coating Thickness Gauge, Standard (0 to 3000) µm

The MRM-YT8300 Coating Thickness Gauge is a standard split dual-use instrument. It can quickly and accurately detect the coating thickness on metal substrate.

The advantages of accurate measurement, large measuring range, multi-calibration mode, multi-measurement mode, has a convenient positioning and powerful function, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.

The Ferrous based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc.

Non-Ferrous based probes detect the thickness of all insulating coatings, such as paint, powder, porcelain, etc. , applied to non-magnetic metal substrates such as aluminum, copper, brass, stainless steel, etc.

It comes with a one-year manufacturer’s warranty.
Shop for MRM-YT8300 Dual Use Coating Thickness Gauge at MRM Metrology, and save
Buy MRM-YT8300 Coating Thickness Gauge now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models
SKU: MRM-YT8300 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Support magnetic and non-magnetic substrate coating measurement
○ Quick response, 0.3 s results
○ Backlight display, can be seen at night
○ Large storage space
○ IPS color screen, the test results are more intuitive
○ Rugged housing with IP65 protection grade

Range (0 to 3000) μm
Resolution 0.1 μm
Accuracy Zero Calibration: ±(3% H +1) μm
Two Point Calibration: ±(1 to 3% H +1.5) μm
Note: H is the Sample Thickness
Probe Type Split Dual-Use
Matrix Ferrous , Non-Ferrous
Display Screen IPS Full Color Screen, 1.14″
Interface Type C USB, Bluetooth 5.0, Button
Stored Data 3,500 massive storage via mobile app
Battery Capacity Lithium-ion battery, fully charged, one-time continuous test 10000
Measuring Modes Basic Model, Quality Control Model, Continuous Model, Statistical Model
Minimum Measurement Size Magnetism：10 × 10 mm , Non-magnetic：10 × 10 mm
Minimum Measurement Thickness Magnetism：0.2 mm , Non-magnetic：0.05 mm
Minimum Curvature Convex Radius 5 mm , Concave Radius 10 mm
Unit μm , mil
PC Software HarmonyOS, Windows, Android, and IOS
Conformation ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle
Warranty One-year limited manufacturer’s warranty

Size (102 × 50 × 20) mm , Probe Head Ø (18 x 69)
Weight 80 g

INCLUDED
2 bases (Aluminium Matrix and Iron Matrix), wrist strap, Wipe cloth, USB cable, positioning film, calibration film
OPTIONAL
Printer，5V-2A Power adapter

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-YT8300 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-YT8300 Coating Thickness Gauge

For a quote, please email us at  [email protected]
