| ○ Simple operation and fast test speed |
| ○ Maximum measuring thickness is 5000 µm |
| ○ Support zero-point, five-point calibration, Supports a variety of calibration method, making the test more convenient and meeting the requirements of higher test accuracy |
| ○ IPS pure color screen, red and green LED indicators, buzzer sound, large storage capacity |

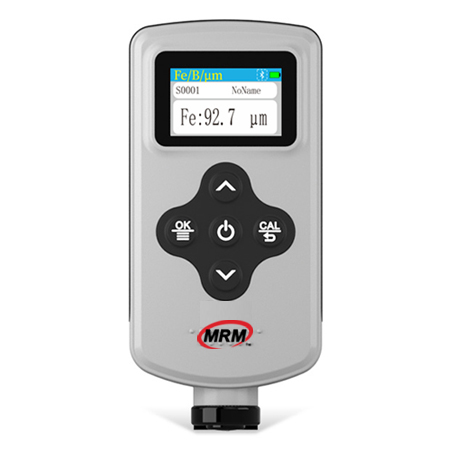

| ○ Rich measurement modes, Coating Thickness Gauge YT6500 has a basic mode, quality control mode, continuous mode and statistical mode to choose from, adapting to more test scenarios |
| ○ Non-destructive testing, automatic identification of substrate type Coating Thickness Gauge YT6500 can automatically identify magnetic and non-magnetic substrates, non-destructive testing does not damage the sample, and improves the detection speed |
| ○ Accurately measure the surface plane Convex Radius 5mm; Concave Radius 10mm |
| ○ Self developed high-sensitivity probe has fast response speed and more accurate test |
| ○ Manual/automatic shutdown function. Automatic shutdown to save power when inactive for long time |
| ○ Support Bluetooth, more extended functions of mobile phone APP can instantly transfer measurement data to hand APP through Bluetooth, perform corresponding data editing and processing, and output test report |
| ○ IP65 level protection, durable, anti-drop, anti-shock |
| Range | (0 to 5000) μm |
| Resolution | 0.1 μm |
| Accuracy | Zero Calibration: ±(3% H +1) μm Two Point Calibration: ±(1 to 3% H +1.5) μm Note: H is the Sample Thickness |
| Probe Type | Intergrated |
| Matrix | Ferrous , Non-Ferrous |
| Display Screen | IPS Full Color Screen, 1.14″ |
| Interface | Type C USB, Bluetooth 5.0, Button |
| Stored Data | 3,500 massive storage via mobile app |
| Battery Capacity | Lithium-ion battery, fully charged, one-time continuous test 10000 |
| Measuring Modes | Basic Model, Quality Control Model, Continuous Model, Statistical Model |
| Minimum Measurement Size | Magnetism：10 × 10 mm , Non-magnetic：10 × 10 mm |
| Minimum Measurement Thickness | Magnetism：0.2 mm , Non-magnetic：0.05 mm |
| Minimum Curvature | Convex Radius 5 mm , Concave Radius 10 mm |
| Working temperature | (0 to 40) ºC (10 to 90) % RH without condensation |
| Storage temperature | (-10 to 50) ºC |
| Unit | μm , mil |
| PC Software | HarmonyOS, Windows, Android, and IOS |
| Conformation | ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle |
| Warranty | One-year limited manufacturer’s warranty |
| Size | (107 × 50 × 20) mm |
| Weight | 65 g |
| INCLUDED | |
| 2 bases (Aluminium Matrix and Iron Matrix), wrist strap, Wipe cloth, USB cable, positioning film, calibration film | |
| OPTIONAL | |
| Printer，5V-2A Power adapter |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-YT6500 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MRM-YT6500 Coating Thickness Gauge
For a quote, please email us at [email protected]
