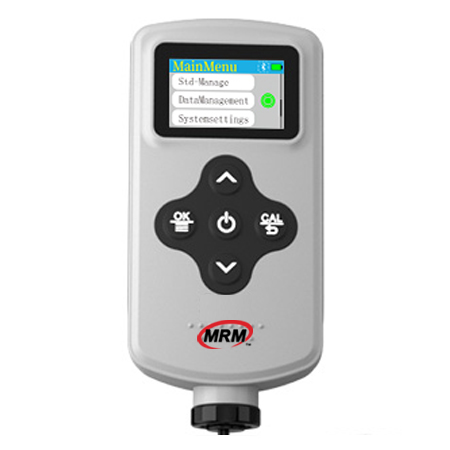

MRM-YT8200 Coating Thickness Gauge, Economical (0 to 2000) µm

The MRM-YT8200 Coating Thickness Gauge is a Economical split type iron-based instrument. It can quickly and accurately detect the thickness of non-magnetic coating on ferromagnetic metal substrate by magnetic method.

The advantages of accurate measurement, large measuring range, multi-calibration mode, multi-measurement mode, has a convenient positioning and powerful function, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.

The Fe probe can detect the thickness of non-magnetic coatings sprayed on magnetic substrates (such as steel), such as the paint coating, powder spraying coating, porcelain coating, chromium coating, copper coating, zinc coating, etc.

It comes with a one-year manufacturer’s warranty.
Shop for MRM-YT8200 Economical split type iron-based Coating Thickness Gauge at MRM Metrology, and save
Buy MRM-YT8200 Coating Thickness Gauge now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models
SKU: MRM-YT8200 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy
○ IPS pure color screen, smooth operation, large storage capacity
○ Coating thickness tester YT8200 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios
○ The radius of convex plane and concave plane. Precisely measured at 5mm and 10mm respectively
○ Independently developed high sensitive probe response speed, testing more accurate
○ Support Bluetooth, more extended functions of mobile phone APP can instantly transfer measurement data to hand APP through Bluetooth, perform corresponding data editing and processing, and output test report

Range (0 to 2000) μm
Resolution 1 μm
Accuracy Zero Calibration: ±(3% H +1) μm
Two Point Calibration: ±(1 to 3% H +1.5) μm
Note: H is the Sample Thickness
Probe Type Split type
Matrix Ferrous
Display Screen IPS Full Color Screen, 1.14″
Interface Type C USB, Button
Stored Data One thousand
Battery Capacity Lithium-ion battery, fully charged, one-time continuous test 10000
Measuring Modes Basic Model, Quality Control Model, Continuous Model, Statistical Model
Minimum Measurement Size 10 × 10 mm
Minimum Measurement Thickness Magnetic：0.2 mm
Minimum Curvature Convex Radius 5 mm , Concave Radius 10 mm
Working temperature (0 to 40) ºC (10 to 90) % RH without condensation
Storage temperature (-10 to 50) ºC
Unit μm , mil
PC Software HarmonyOS, Windows, Android, and IOS
Warranty One-year limited manufacturer’s warranty

Size (102 × 50 × 20) mm , Probe head Ø (18×69)
Weight 80 g

INCLUDED
1 base (iron base), wrist strap,，Wipe cloth, USB cable, Positioning film, calibration film
OPTIONAL
Printer，5V-2A Power adapter

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-YT8200 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-YT8200 Coating Thickness Gauge

For a quote, please email us at  [email protected]
