| ○ Maximum measurement thickness 3,000 μm |
| ○ Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy |
| ○ YT6300 can automatically identify magnetic, non-magnetic substrate, non-destructive testing does not harm samples, enhance the detection speed |
| ○ Backlight display, can be seen at night |
| ○ Coating thickness tester YT6300 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios |
| ○ IPS pure color screen, smooth operation, large storage capacity |
| ○ The radius of convex plane and concave plane. Precisely measured at 5mm and 10mm respectively |
| ○ Independently developed high sensitive probe response speed, testing more accurate |
| ○ Support Bluetooth, more extended functions of mobile phone APP can instantly transfer measurement data to hand APP through Bluetooth, perform corresponding data editing and processing, and output test report |
| Range | (0 to 3000) μm |
| Resolution | 0.1 μm |
| Accuracy | Zero Calibration: ±(3% H +1) μm Two Point Calibration: ±(1 to 3% H +1.5) μm Note: H is the Sample Thickness |
| Probe Type | Intergrated |
| Matrix | Ferrous , Non-Ferrous |
| Display Screen | IPS Full Color Screen, 1.14″ |
| Interface | Type C USB, Bluetooth 5.0, Button |
| Stored Data | 2,000 massive storage via mobile app |
| Battery Capacity | Lithium-ion battery, fully charged, one-time continuous test 10000 |
| Measuring Modes | Basic Model, Quality Control Model, Continuous Model, Statistical Model |
| Minimum Measurement Size | Magnetism：10 × 10 mm , Non-magnetic：10 × 10 mm |
| Minimum Measurement Thickness | Magnetism：0.2 mm , Non-magnetic：0.05 mm |
| Minimum Curvature | Convex Radius 5 mm , Concave Radius 10 mm |
| Working temperature | (0 to 40) ºC (10 to 90) %RH without condensation |
| Storage temperature | (-10 to 50) ºC |
| Unit | μm , mil |
| PC Software | HarmonyOS, Windows, Android, and IOS |
| Conformation | ISO 2178, ISO 2360, GB/t 4956, GB/t 4957, ASTM B499 and other standards of magnetic method and Eddy current method testing principle |
| Warranty | One-year limited manufacturer’s warranty |
| Size | (107 × 50 × 20) mm , Probe Head Ø (18 x 69) |
| Weight | 65 g |
| INCLUDED | |
| 2 bases (Aluminium Matrix and Iron Matrix), wrist strap, Wipe cloth, USB cable, positioning film, calibration film | |
| OPTIONAL | |
| Printer，5V-2A Power adapter |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-YT6300 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

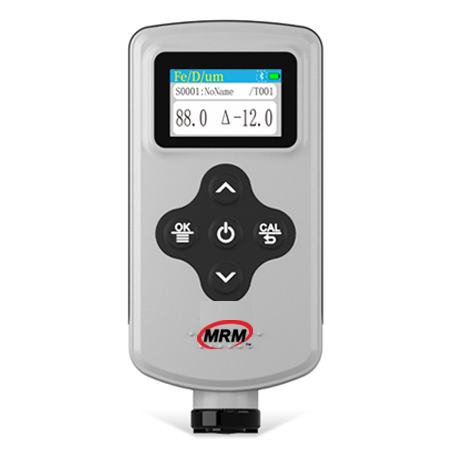

MRM-YT6300 Coating Thickness Gauge
For a quote, please email us at [email protected]
