| ○ Non-Contact Measurement without damaging the product, providing accurate gloss data measurement can be achieved with a distance of 10 mm from the measured plane. |
| ○ Online real-time monitoring of product gloss; open data interface for system integration and expansion of application scope. |
| ○ Data Stability: The repeatability of the instrument is very good, within the measurement range of (0 to 100) GU, the repeatability can reach ±0.5 GU, within the measurement range of (100 to 1000) GU, the repeatability can reach ±0.5% of the reading |
| ○ Support basic mode, statistical mode, continuous mode, quality control mode switching, adapt to different application scenarios. The normal mode is ready to release and measure, fast reading; the quality control mode can customize the upper and lower limits to realize the rapid detection of incoming materials. |
| ○ The instrument is equipped with dedicated computer software (only supports Windows system), which can be connected to a computer for testing, and can generate test reports from the measured data. |
| Measuring Angle | 60° |
| Measuring Spot | (9 x 15) mm |
| Measuring Range | (0 to 1000) GU |
| Division Value | 0.1 GU |
| Non-Contact Distance | Non-contact distance 10.0mm ± 0.1, the parallelism between the measured surface of the sample and the measuring aperture surface is 0.2 degrees |
| Measurement Mode | Basic mode, statistical mode, continuous mode, quality control mode |
| Measure time | 0.2s/1s |
| Repeatability | (0 to 100) GU: ±0.5GU (100 to 1000) GU: ±0.5%GU Test at intervals of 5 seconds under 10mm verification tooling (ensure test distance 10 and parallelism) |
| Measurement Standard | Meet the requirements of JJG 696 working gloss meter |
| Automatic Shutdown Time | 30s, 60s, 90s, 2m or Never Shut Down |
| Long Time Calibration | With automatic calibration standard function and manual calibration |
| Language | Simplified Chinese, English, Traditional Chinese |
| Storage | 35000pcs（15,000 records in basic mode and continuous mode, 10,000 records in quality control mode, and 10,000 records in statistical mode） |
| Display | 2.3 inch black and white display |
| Power Supply | Use the USB interface power adapter |
| Data Port | USB, Bluetooth 5.0 |
| PC Software | Quality inspection report printing, more function expansion |
| Operation Temperature | (0 to 40)°C / (32 to 104)°F |
| Storage Temperature | (-20 to 50)°C /（-4 to 122)°F |
| Humidity | Less than 85% RH, no condensation |
| Note | The technical parameters are for reference only, please refer to the actual products sold |
| Warranty | One-year limited manufacturer’s warranty |
| Dimension L x W x H | 140 mm x 83 mm x 38 mm |
| Weight | 500g g |
| INCLUDED | |
| Power adapter, quality management software (official website download or after-sales), calibration standard plate, calibration bracket | |
| OPTIONAL | |
| Micro-printer |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-YG60L when requesting calibration services from MRM Metrology.
Calibration and Repair Services

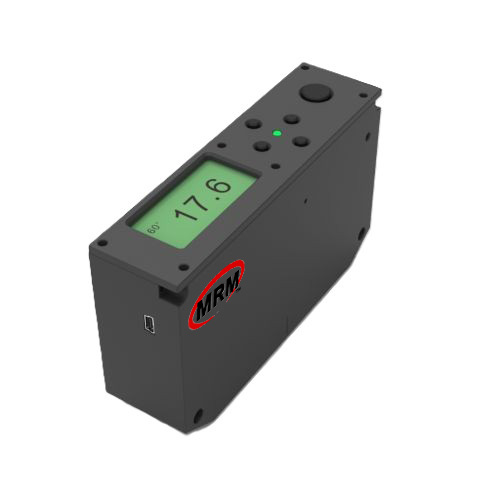

MRM provides Calibration and Repair Services for the MRM-MRM-YG60L Gloss Meter, Non-Contact
For a quote, please email us at [email protected]
