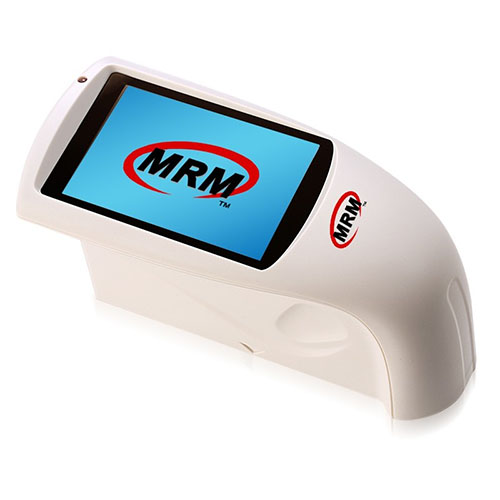

| ○ MRM-HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc |
| ○ 60° angle for semi gloss |
| ○ Concise appearance, feel good |
| ○ Display 5 sets of measurement data, good for comparison |
| ○ Built-in lithium-ion rechargeable battery |
| ○ Basic model measurement can meet basic glossiness testing requirements |
| ○ Connect to PC, more extend functions |
| ○ One button for all angles measurement at the same location |
| ○ Comply with international standards |
| ○ Stable performance, easy to read data |
| ○ GQC6 software is used with Gloss Meter for PC connection, measurement, data management, data export, print reports, etc. |
| Measure Angle | 60° |
| Standard Compliance | ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 9 x 15 mm |
| Measuring Range | (0 to 300) GU |
| Division Value | 0.1 GU |
| Measurement Range | 0–10GU | 10–100GU | 100–300GU |
| Repeatability | ± 0.1GU | ± 0.2GU | ± 0.2%GU |
| Reproducibility | ± 0.2GU | ± 0.5GU | ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5 , ± 1.5% |
| Measuring Time | 0.5 s |
| Language | Chinese/English |
| Battery | 3.7V, 3200mAh Li-ion Battery，>10000 times (within 8 hours) |
| Viewing Screen | TFT 3.5 inch |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions |
| Operation Temperature | (0 to 40)°C / (32 to 104)°F |
| Storage Temperature | (-20 to 50)°C /（-4 to 122)°F |
| Humidity | <85% relative humidity, no condensation |
| Note | The specifications are subject to change without notice |
| Warranty | One-year limited manufacturer’s warranty |
| Dimension L x W x H | 160 mm x 75 mm x 90 mm |
| Weight | 350 g |
| INCLUDED | |
| Power Adapter, USB cable, User Manual, GQC6 software CD, Calibration Plate | |
| OPTIONAL | |
| Miniature printer |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-HG60 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the MRM-HG60 Gloss Meter, Microporous Precision
For a quote, please email us at [email protected]
