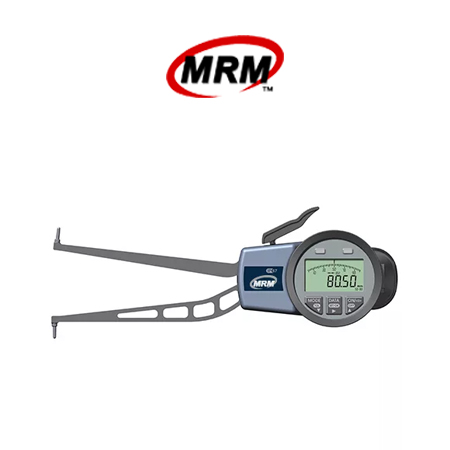

MRM-L350 Electronic Internal Caliper Gauge (50 to 80) mm

CAD 345.00

The MRM-L350 Electronic Internal Caliper Gauge is used for Internal Measurement.

It comes with a two-year manufacturer’s warranty.
Shop for MRM-L350 Digital Caliper Gauge at MRM Metrology, and save.
Buy MRM-L350 Caliper Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: MRM-L350 Category:

Product Description

  • Features
  • Specifications

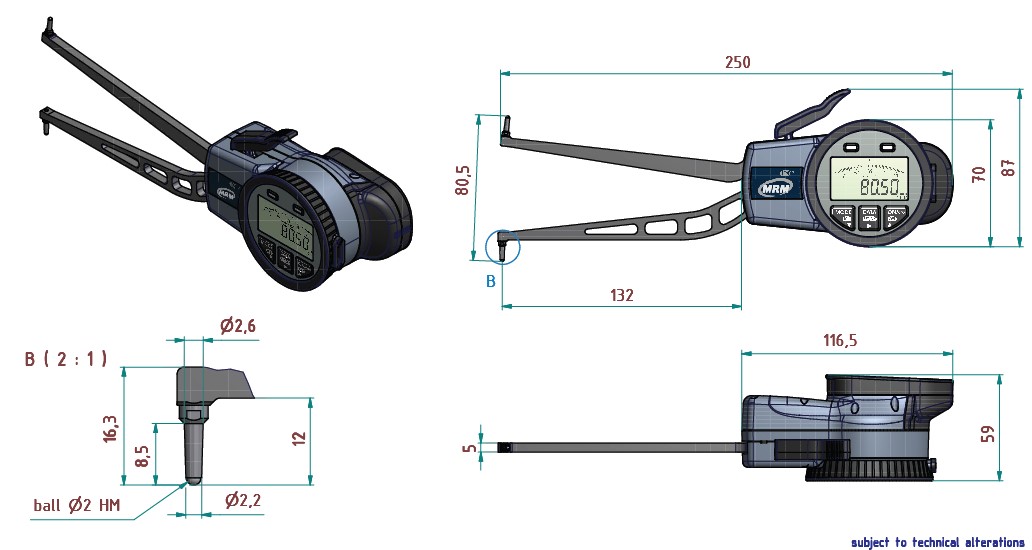

  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Internal measurement

Range (50 to 80) mm
Resolution 0.02 / 0.05 mm
Accuracy ± 0.04 mm
Measuring Span Mes 30 mm
Range of Indication Azb (49.5 to 80.5) mm
Repeatability Limit R 0.02 mm
Measuring Force F min. 1.2 N
Measuring Force F max. 7 N
Type of Measuring Contact Movable HM-Ball Ø 2 mm
Measuring Contact Movable Hb 8.5 mm
Type of Measuring Contact Fixed HM-Ball Ø 2 mm
Measuring Contact Fixed Hf 8.5 mm
Measuring Contact Thickness Max. 2.6 mm
Measuring Depth Max. L 132 mm
Weight 370 g
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP67
Warranty Two years limited manufacturer’s warranty

Interface Digimatic Order no. 1961-09 + 2482-07
Interface USB Order no. 1961-09 + 2482-05
Interface U-Wave Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02
Wooden Box 410 g
Holding Unit 8004-55

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-L350 Electronic Internal Caliper Gauge

For a quote, please email us at  [email protected]
