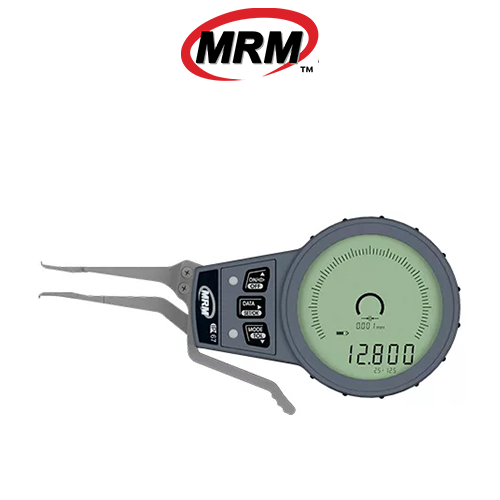

MRM-G002 Electronic Caliper Gauge

Electronic measuring gauge. Internal measurement.
Shop for MRM-G002 at MRM Metrology and CAL MRM-G002 for ordering calibration services.

Other Models
SKU: G002 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Internal measurement

Measuring Range (2.5 to 12.5) mm
Measuring Span Mes 10 mm
Range of Indication Azb (2.4 to 12.8) mm
Resolution 0.001 / 0.002 / 0.005 / 0.01 mm
Accuracy ± 0.01 mm
Repeatability Limit R 0.005 mm
Measuring Force F min. 0.8 N
Measuring Force F max. 3 N
Type of Measuring Contact Movable Chisel R 0.12 mm
Measuring Contact Movable Hb 0.9 mm
Type of Measuring Contact Fixed Chisel R 0.12 mm
Measuring Contact Fixed Hf 0.9 mm
Measuring Contact Thickness Max. 0.6 mm
Measuring Depth Max. L 12 mm
Weight 160 g
Reference Temperature 20 °C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP67
Warranty Two (2) year limited manufacturer’s warranty

Interface Digimatic Order no. 1961-09 + 2482-07
Interface USB Order no. 1961-09 + 2482-05
Interface U-Wave Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02
Wooden Box 410 g
Holding Unit 8004-55

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-G002 Electronic Caliper Gauge

For a quote, please email us at  Service@MRMmetrology.com
