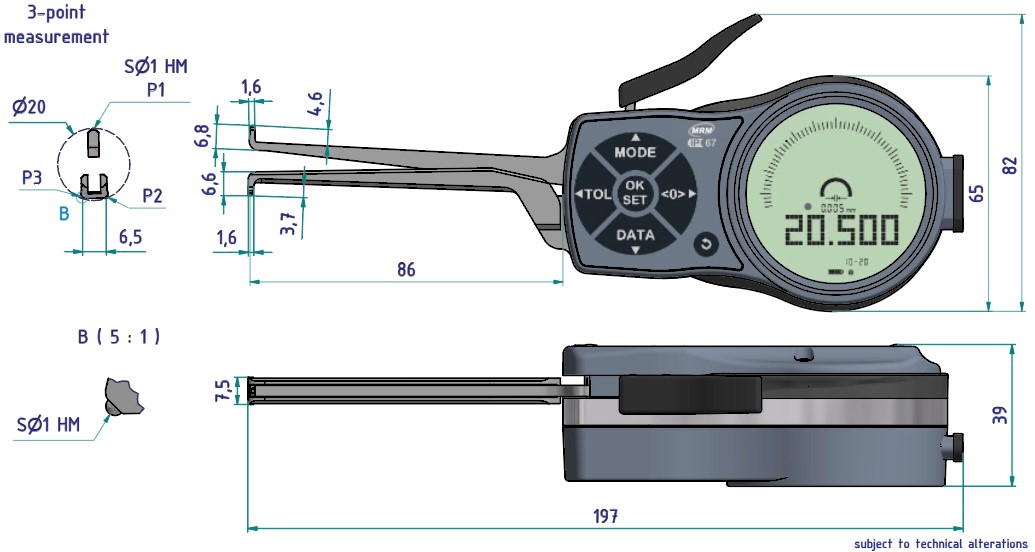

- Dimension
- Accessories
- Downloads
- Calibration

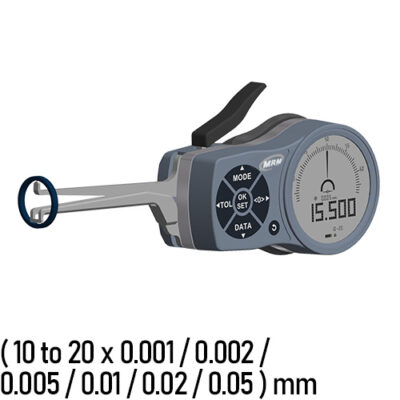

| ○ Electronic 3-point measuring gauge |
| ○ Internal three-point measurement |
| Range | (10 to 20) mm |
| Resolution | (0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05) mm |
| Accuracy | ± 0.02 mm |
| Measuring Span Mes | 10 mm |
| Range of indication Azb | (9.8 to 20.5) mm |
| Repeatability Limit R | 0.1 mm |
| Measuring Force F min. | 1.1 N |
| Measuring Force F max. | 1.6 N |
| Type of Measuring Contact Movable | HM-Ball Ø 1.0 mm |
| Measuring Contact Movable Hb | 4.6 mm |
| Type of Measuring Contact Fixed | HM-Ball Ø 1.0 mm |
| Measuring Contact Fixed Hf | 3.7 mm |
| Measuring Contact Thickness Max. | 1.6 mm |
| Measuring Depth Max. L | 75 mm |
| Weight | 270 g |
| Reference Temperature | 20 °C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP67 |
| Power Supply | 2 LR03 Batteries (AAA) |
| Warranty | Two years limited manufacturer’s warranty |
| Interface Bluetooth | Order no. 1961-13 |
| Interface Digimatic | Order no. 1961-09 + 2482-07 |
| Interface USB | Order no. 1961-09 + 2482-05 |
| Interface U-Wave | Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02 |
| Wooden Box | Order no. 1732-65 |
| Holding Unit | Order no. 8007-10 |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-L210P3 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MRM-L210P3 Electronic Internal Caliper Gauge
For a quote, please email us at [email protected]
