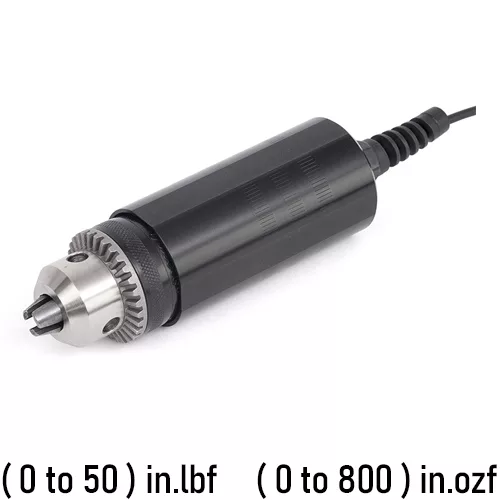

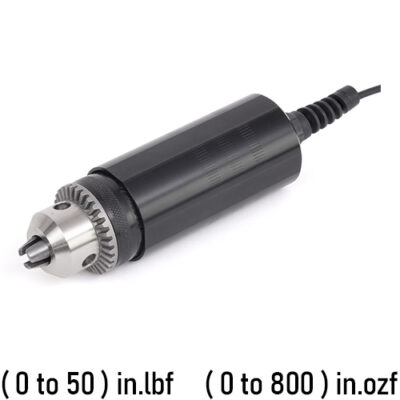

| ○ Member of the Plug & Test™ family of interchangeable sensors and indicators |
| ○ Rugged aluminum housing |
| ○ Measure bi-directional torque for a wide variety of applications |
| ○ Contains a chuck for samples of 12.7 mm / 1/2″ diameter, depending on capacity |
| ○ The sensor can be used as a hand held device, or mounted to a torque test stand |
| ○ Requires a Mark-10 indicator |
| Accuracy | ± 0.35% of Full Scale + Indicator |
| Weight | From 0.6 kg , 1.4 lb |
| Manufacturer’s Warranty | 3 years (See individual statement for further details) |
| MODELS: 5i and 7i INDICATORS | ||||||||
| Capacity x Resolution | in.lbf | in.ozf | ft.lbf | cm.gf | mm.kgf | m.Nm | cm.N | N.m |
| MR50-10Z | – | 10 x 0.005 | – | 700 x 0.5 | 7 x 0.005 | 70 x 0.05 | 7 x 0.005 | – |
| MR50-20Z | – | 20 x 0.01 | – | 1400 x 1 | 14 x 0.01 | 140 x 0.1 | 14 x 0.01 | – |
| MR50-50Z | – | 50 x 0.02 | – | 3600 x 2 | 36 x 0.02 | 350 x 0.2 | 35 x 0.02 | – |
| MR50-12 | 12 x 0.005 | 192 x 0.1 | 1 x 0.0005 | – | – | – | 135 x 0.1 | 1.35 x 0.001 |
| MR50-50 | 50 x 0.02 | 800 x 0.5 | 4 x 0.002 | – | – | – | 570 x 0.5 | 5.7 x 0.005 |
| MR50-100 | 100 x 0.05 | 1600 x 1 | 8 x 0.005 | – | – | – | 1150 x 0.5 | 11.5 x 0.005 |
| MODEL: 3i INDICATOR | ||||
| Capacity x Resolution | in.lbf | in.ozf | mm.kgf | cm.N |
| MR50-10Z | – | 10 x 0.01 | 7 x 0.005 | 7 x 0.005 |
| MR50-20Z | – | 20 x 0.02 | 14 x 0.01 | 14 x 0.01 |
| MR50-50Z | – | 50 x 0.05 | 36 x 0.05 | 36 x 0.05 |
| MR50-12 | 12 x 0.01 | 192 x 0.2 | – | 135 x 0.1 |
| MR50-50 | 50 x 0.05 | 800 x 1 | – | 570 x 0.5 |
| MR50-100 | 100 x 0.1 | 1600 x 2 | – | 1150 x 1 |
| Model | A | Chuck Size Range | Chuck Key Size |
| MR50-10Z | 122.4 mm / 4.82″ | (1.6 to 9.5) mm / (0.062 to 0.375)” includes key | KGA |
| MR50-20Z | 122.4 mm / 4.82″ | (1.6 to 9.5) mm / (0.062 to 0.375)” includes key | KGA |
| MR50-50Z | 122.4 mm / 4.82″ | (1.6 to 9.5) mm / (0.062 to 0.375)” includes key | KGA |
| MR50-12 | 131.8mm / 5.19″ | (2.0 to 12.7) mm / (0.078 to 0.5)” includes key | KK |
| MR50-50 | 131.8mm / 5.19″ | (2.0 to 12.7) mm / (0.078 to 0.5)” includes key | KK |
| MR50-100 | 131.8mm / 5.19″ | (2.0 to 12.7) mm / (0.078 to 0.5)” includes key | KK |
| Optional Items | |
| 20-1025 | Spare chuck key for MR50-12 – MR50-100, size KK |
| 20-1025-1 | Spare chuck key for MR50-10Z – MR50-50Z, size KGA |
| AC1007 | Mounting kit, R50, table top |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MR50-50 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MR50-50 Mark-10 Torque Sensor
For a quote, please email us at [email protected]
