Mark-10 Sensor MR50

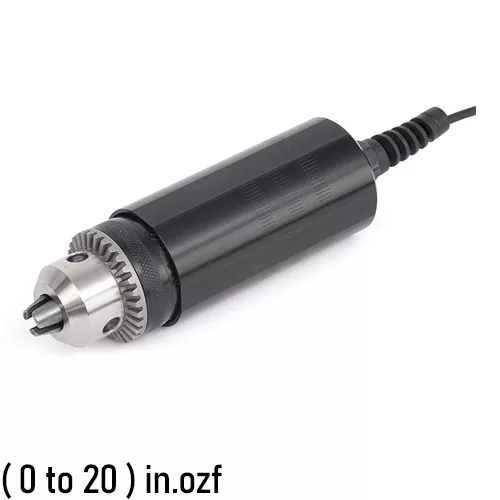

MR50-20Z Mark-10 Torque Sensor, 20 in.ozf

Series R50 Universal Torque Sensor

The MR50-20Z Mark-10 Torque Sensor measures bi-directional torque for a wide variety of applications. Contains a chuck for samples up to 9.5 mm / 0.375″ in diameter, depending on capacity. The sensor can be used as a handheld device or mounted to a torque test stand.

Made in the USA and comes with a three year manufacturer’s warranty.
Shop for MR50-20Z at MRM Metrology and use CAL MR50-20Z when ordering calibration services.

Made in USA
Other Models
SKU: MR50-20Z Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Member of the Plug & Test™ family of interchangeable sensors and indicators
○ Rugged aluminum housing
○ Measure bi-directional torque for a wide variety of applications
○ Contains a chuck for samples of 9.5 mm / 0.375″ diameter, depending on capacity
○ The sensor can be used as a hand held device, or mounted to a torque test stand
○ Requires a Mark-10 indicator

Accuracy ± 0.35% of Full Scale + Indicator
Weight From 0.6 kg / 1.4 lb
Manufacturer’s Warranty 3 years (See individual statement for further details)

MODELS: 5i and 7i INDICATORS
Capacity x Resolution in.lbf in.ozf ft.lbf cm.gf mm.kgf m.Nm cm.N N.m
MR50-10Z – 10 x 0.005 – 700 x 0.5 7 x 0.005 70 x 0.05 7 x 0.005 –
MR50-20Z – 20 x 0.01 – 1400 x 1 14 x 0.01 140 x 0.1 14 x 0.01 –
MR50-50Z – 50 x 0.02 – 3600 x 2 36 x 0.02 350 x 0.2 35 x 0.02 –
MR50-12 12 x 0.005 192 x 0.1 1 x 0.0005 – – – 135 x 0.1 1.35 x 0.001
MR50-50 50 x 0.02 800 x 0.5 4 x 0.002 – – – 570 x 0.5 5.7 x 0.005
MR50-100 100 x 0.05 1600 x 1 8 x 0.005 – – – 1150 x 0.5 11.5 x 0.005

MODEL: 3i INDICATOR
Capacity x Resolution in.lbf in.ozf mm.kgf cm.N
MR50-10Z – 10 x 0.01 7 x 0.005 7 x 0.005
MR50-20Z – 20 x 0.02 14 x 0.01 14 x 0.01
MR50-50Z – 50 x 0.05 36 x 0.05 36 x 0.05
MR50-12 12 x 0.01 192 x 0.2 – 135 x 0.1
MR50-50 50 x 0.05 800 x 1 – 570 x 0.5
MR50-100 100 x 0.1 1600 x 2 – 1150 x 1


Model A Chuck Size Range Chuck Key Size
MR50-10Z 122.4 mm / 4.82″ (1.6 to 9.5) mm / (0.062 to 0.375)” includes key KGA
MR50-20Z 122.4 mm / 4.82″ (1.6 to 9.5) mm / (0.062 to 0.375)” includes key KGA
MR50-50Z 122.4 mm / 4.82″ (1.6 to 9.5) mm / (0.062 to 0.375)” includes key KGA
MR50-12 131.8mm / 5.19″ (2.0 to 12.7) mm / (0.078 to 0.5)” includes key KK
MR50-50 131.8mm / 5.19″ (2.0 to 12.7) mm / (0.078 to 0.5)” includes key KK
MR50-100 131.8mm / 5.19″ (2.0 to 12.7) mm / (0.078 to 0.5)” includes key KK

Optional Items
20-1025 Spare chuck key for MR50-12 – MR50-100, size KK
20-1025-1 Spare chuck key for MR50-10Z – MR50-50Z, size KGA
AC1007 Mounting kit, R50, table top

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MR50-20Z Mark-10 Torque Sensor

For a quote, please email us at  [email protected]
