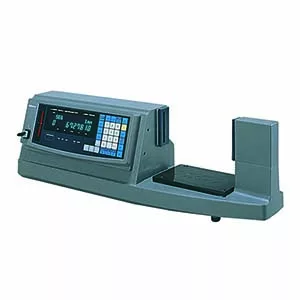

LSM-9506 Mitutoyo Laser Scan Micrometer

Bench Top Type Non-contact Measuring System. Use a low-power visible laser for measurement. The laser is a CLASS 2 EN/IEC 608825-1 (2007)




Measuring Range (0.5 to 60) mm / (0.02 to 2.36)”
Resolution (0.00005 to 0.1) mm / (0.000002 to 0.005)”
Accuracy* (20°C) ± 2.5 µm / 0.0001″

* At the center of the measuring region.

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Bench Top Type Non-contact Measuring System
○ Use a low-power visible laser for measurement
○ The laser is a CLASS 2 EN/IEC 608825-1 (2007)

Order No 544-116-1A
Measuring Range (0.5 to 60) mm / (0.02 to 2.36)”
Resolution (0.00005 to 0.1) mm / (0.000002 to 0.005)”
Repeatability* ± 0.6 µm / 0.00003″
Accuracy** (20°C) ± 2.5 µm / 0.0001″
Positional Error***
(optical axis/scanning direction)
± 2.5 µm / 0.0001″
L: Displacement between workpiece center and optical axis center
Measuring Area**** (5 to 60) mm / (0.02 to 2.36)”
Scanning Rate 1600 per sec
Laser Wavelength 650 nm (Visible)*****
Laser Scanning Speed (226 m/s) / (8900″/ s)
Display Unit 16-digit dot matrix (upper column) + 7 segment 11-digit (lower column), guidance LEDs
Standard Interface RS-232C, Digimatic code output unit (1 ch)
Optional interface No
Data Output RS-232C, VO Analog Interface, SPC
Power Supply AC100 V to 240 V, 50/60 Hz, 40 VA
Operating Enviorment (0 to 40)°C, RH 35 to 85% No condensation

* Determined by the value for ± 2σ at the measurement interval of 0.32 sec.
** At the center of the measuring region.
*** An error due to workpiece shift either in the optical axis direction or in the scanning direction.
**** The area is given by “measuring range on the optical axis” x “measuring range in the scanning direction”.
***** FDA Class II (544-116-1A) semiconductor laser for scanning (Maximum power: 1.0 mW)


02AGD170 Calibration gage set (ø 1.0 mm, ø 60 mm)
02AGD680 Adjustable Workstage
02AGD580 Center support*
02AGD590 Adjustable V-block*
936937 SPC output cable (1 m)
937179T Footswitch
264-012-10 USB Input Tool for spreadsheets (SPC cable also required)

*Use with an adjustable workstage.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
LSM-9506 Mitutoyo Laser Scan Micrometer

For a quote, please email us at  Service@MRMmetrology.com
