LSM-902/6900 Mitutoyo Laser Scan Micrometer

Ultra high Accuracy Non-contact Measuring System. Non-contact laser-based measuring system, mainly for outside diameter measurement. Suitable for delicate or moving workpieces. It is highly suitable for pin gauge measurement.




Measuring Range (0.1 to 25) mm / (0.004 to 1)”
Resolution (0.01 to 10) µm / (0.000001 to 0.0005)”
Accuracy* Whole ± 0.5 μm in the (ø 0.1 to ø25) mm range
Accuracy* Small ± (0.3 + 0.1 D) μm

* At the center of the measuring range.

Product Description

  • Features

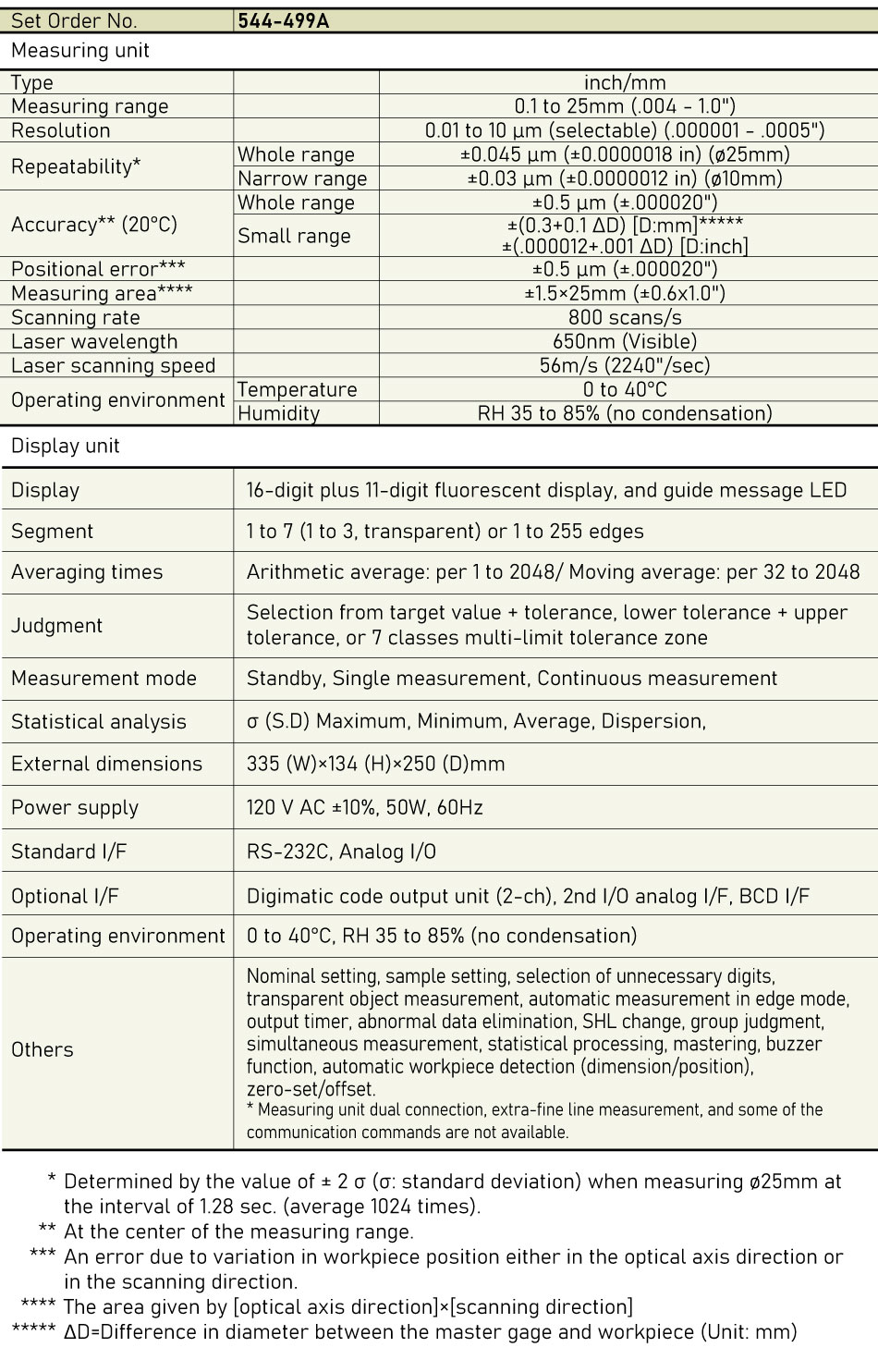

  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Non-contact laser-based measuring system, mainly for outside diameter measurement
○ It is highly suitable suited for pin gage measurement
○ The laser is a CLASS 2 EN/IEC 608825-1 (2007)
○ The system consists of a measuring unit (LSM-902) and a display unit (LSM-6900)

02AGD180 Calibration gage set (ø1.0, ø25.0)
02AGD270 Workstage
02AGD280 Adjustable workstage
02AGC840 Digimatic code output unit (2-ch)
02AGC880 2nd I/O analog interface unit
02AGC910 BCD interface unit
02AGD600B Printer & cable set (120V AC C-type plug)
223663 Printing paper TP411-28CL / 1Pack = 10pcs
936937 Digimatic code output cable
937179T Foot switch

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
LSM-902/6900 Mitutoyo Laser Scan Micrometer

For a quote, please email us at  Service@MRMmetrology.com
