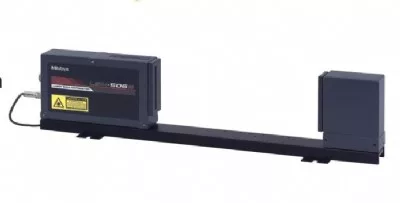

LSM-506S Mitutoyo Laser Scan Micrometer

High Accuracy Non-contact Measuring System.Suitable for high-speed lines or in applications subject to vibration.




Measuring Range (1 to 60) mm / (0.04 to 2.36)”
Resolution (selectable) (0.05 to 100) µm / (0.000002 to 0.005)”
Accuracy (20°C)* Whole ± 3 µm
Accuracy (20°C)* Small ± (1.5 + 0.5 ΔD) µm**

*Center of measuring range for cylindrical workpieces outside diameter.
** ∆D=Difference in diameter between the master gauge and workpiece (Unit: mm).

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Ultra-high speed measurement of 3200 scan/sec
○ Suitable for high-speed lines or in applications subject to vibration
○ Ensures ± 3 µm accuracy over the entire measuring range (1 to 60) mm

Package No. 64PKA120
Order No (Laser Only) 544-538
Measuring Range (1 to 60) mm / (0.04 to 2.36)”
Resolution (selectable) (0.05 to 100) µm / (0.000002 to 0.005)”
Repeatability* ± 0.36 µm / 0.000014″
Accuracy (20°C)** Whole ± 3 µm / Small ± (1.5 + 0.5 ΔD) µm***
Positional Error**** ± 4 µm / 0.00016″
Measuring Area***** (20 x 60) mm / (0.8 x 2.36)”
Scanning Rate 3200 scans/s
Laser Wavelength 650 nm
Laser Scanning Speed (452 m/s) / (17795″/s)
Protection Level IP64
Temperature (0 to 40)°C
Humidity 35% RH to 85% RH No condensation
Altitude 2000 m or less

* Determined by the value of ± 2σ (σ: standard deviation) when measuring ø60 mm at the interval of 0.32 sec. (average 1024 times).
**Center of measuring range for cylindrical workpieces outside diameter.
*** ∆D=Difference in diameter between the master gauge and workpiece (Unit: mm).
**** An error of the outside diameter due to variation in the workpiece position either in the optical axis direction or in the scanning direction.
***** The area given by [optical axis direction]×[scanning direction]

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
LSM-506S Mitutoyo Laser Scan Micrometer

For a quote, please email us at  Service@MRMmetrology.com
