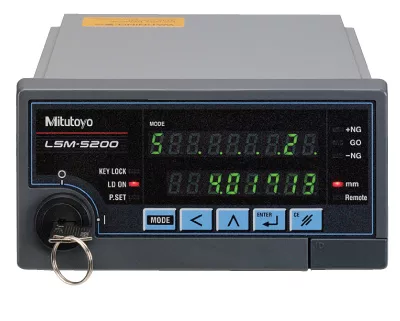

LSM-5200 Mitutoyo Display Unit

Compact Display Unit for real-time Multi-channel Measurement, a compact controller which could be used for multi-unit system configurations and capable of simple connection to a PC via USB.




Display 9 digits plus 8 digits LED, guide message LED
Segment 1 to 7 (1 to 3, transparent) or 1 to 255 edges*
Averaging Method Arithmetic average: from 4 to 2048; Moving average: from 32 to 2048
(Arithmetic average is from 16 to 2048 when using LSM-500S.)

*The measuring range will be 0.1mm to 2mm in the 1 to 255 edge measurement mode or when activating the automatic workpiece detection with 544-531, 544-532

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ A compact controller which could be used for multi-unit system configurations
○ Capable of simple connection to a PC via USB
○ A Panel-mount type display unit designed for the LSM-S series
○ Analog I/O and RS-232C is standard
○ Measurement of odd fluted parts, and simultaneous measurement / 2-program function included
○ Measurement of odd fluted parts, simultaneous measurement, nominal setting, sample setting, selection of unnecessary digits, transparent object measurement*
○ Automatic workpiece detection (dimension/position detected)**
○ Abnormal data elimination, mastering, statistical processing (when using USB, RS-232C), output timer
○ Automatic measurement in edge mode, presetting Note that every function is limited in its combination possibilities
○ Cannot be connected to 544-496A
○ Previous models such as 544-451 cannot be connected
○ For USB communication with a PC, a dedicated device driver is required

* The measuring range is 50μm to 2mm when using 544-531, 544-532. For smaller ranges, contact your local Mitutoyo sales office.
** The measuring range will be 0.1 mm to 2 mm in the 1 to 255 edge measurement mode or when activating the automatic workpiece detection with 544-531, 544-532


Order No 544-047
Display 9 digits plus 8 digits LED, guide message LED
Segment 1 to 7 (1 to 3, transparent) or 1 to 255 edges*
Averaging Method Arithmetic average: from 4 to 2048; Moving average: from 32 to 2048
(Arithmetic average is from 16 to 2048 when using LSM-500S.)
Judgment Selecting from “target value ± tolerance value” or “lower limit/upper limit”.
Measurement Mode Standby, Single measurement, Continuous measurement
Statistical Analysis Calculation result is output via USB or RS-232C
External Dimensions (W x H x D) (144 × 72 × 197.1) mm
Power Supply** 24V DC±10%, 1.3A or more (AC adapters are optional)
Standard I/F USB2.0, RS-232C, I/O analog
Operating Environment (0 to 40)°C, RH 35 to 85% No condensation
Preservation Environments (-20 to 70)°C, RH 35 to 85% No condensation
Mass 1.4 kg

* The measuring range will be 0.1mm to 2mm in the 1 to 255 edge measurement mode or when activating the automatic workpiece detection with 544-531, 544-532. Each function has its combination limit.
** DC24V external power supply (commercial item) is required separately.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
LSM-5200 Mitutoyo Display Unit
