|○ Ultra-high speed measurement of 3200 scan/sec|
|○ Suitable for high-speed lines or in applications subject to vibration|
|○ Ensures ± 7 µm accuracy over the entire measuring range (1 to 160) mm|
|Order No (Laser Only)||544-542|
|Measuring Range||(1 to 160) mm / (0.04 to 6.3)”|
|Resolution (selectable)||(0.1 to 100) µm / (0.000005 to 0.005)”|
|Repeatability*||± 1.4 µm / 0.000055″|
|Accuracy (20°C)**||Whole ± 7 µm / Small ± (4 + 2 ΔD) µm***|
|Positional Error****||± 8 µm / 0.0003″|
|Measuring Area*****||(40 x 160) mm / (1.57 x 6.3)”|
|Scanning Rate||3200 scans/s|
|Laser Wavelength||650 nm|
|Laser Scanning Speed||(1206 m/s) / (47480″/s)|
|Temperature||(0 to 40)°C|
|Humidity||35% RH to 85% RH No condensation|
|Altitude||2000 m or less|
* Determined by the value of ± 2σ (σ: standard deviation) when measuring ø160 mm at the interval of 0.32 sec. (average 1024 times).
**Center of measuring range for cylindrical workpieces outside diameter.
*** ∆D=Difference in diameter between the master gauge and workpiece (Unit: mm).
**** An error of the outside diameter due to variation in the workpiece position either in the optical axis direction or in the scanning direction.
***** The area given by [optical axis direction]×[scanning direction]
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

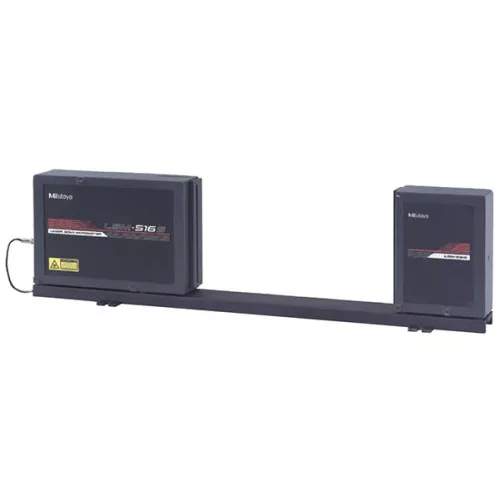

LSM-5016S Mitutoyo Laser Scan Micrometer
For a quote, please email us at Service@MRMmetrology.com
