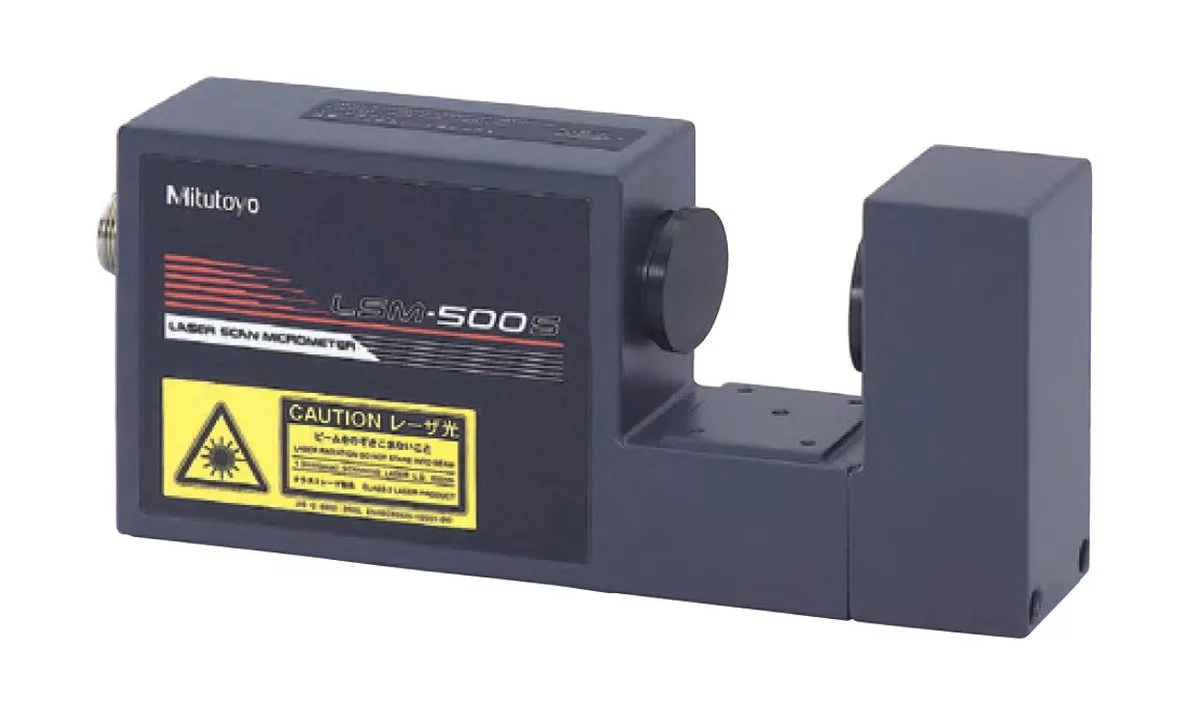

LSM-500S Mitutoyo Laser Scan Micrometer

High Accuracy Non-contact Measuring System.Suitable for high-speed lines or in applications subject to vibration.




Measuring Range (0.005 to 2) mm / (0.0002 to 0.08)”
Resolution (selectable) (0.01 to 10) µm / (0.000001 to 0.0005)”
Accuracy (20°C)** ± 0.3 µm

* The measuring range for the transparent object will be 0.05 mm to 2 mm. Please consult for objects smaller than 0.05 mm. The measuring range will be (0.1 to 2) mm in the (1 to 255) edge measurement mode or when activating the automatic workpiece detection.
** Center of measuring range for cylindrical workpieces outside diameter

SKU: LSM-500S Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Capable of measuring down to 5μm outside diameter*
○ Ultra-high speed measurement of 3200 scan/sec
○ Suitable for high-speed lines or in applications subject to vibration

* The measuring range for the transparent object will be 0.05 mm to 2 mm. Please consult for objects smaller than 0.05 mm. The measuring range will be (0.1 to 2) mm in the (1 to 255) edge measurement mode or when activating the automatic workpiece detection.


Package No. 64PKA117
Order No (Laser Only) 544-532
Measuring Range (0.005 to 2) mm / (0.0002 to 0.08)” *
Resolution (selectable) (0.01 to 10) µm / (0.000001 to 0.0005)”
Repeatability** ± 0.03 µm / 0.0000012″
Accuracy (20°C)*** ± 0.3 µm
Positional Error**** ± 0.4 µm / 0.000016″
Measuring Area***** (1 x 2) mm / (0.04 x 0.08)”
Scanning Rate 3200 scans/s
Laser Wavelength 650 nm
Laser Scanning Speed (76 m/s) / (2992″/ s)
Protection Level IP64
Temperature (0 to 40)°C
Humidity 35% RH to 85% RH No condensation
Altitude 2000 m or less

* The measuring range for the transparent object will be 0.05 mm to 2 mm. Please consult for objects smaller than 0.05 mm. The measuring range will be (0.1 to 2) mm in the (1 to 255) edge measurement mode or when activating the automatic workpiece detection.
** Determined by the value of ± 2σ (σ: standard deviation) when measuring ø2 mm at the interval of 0.332 sec. (average 1024 times).
*** Center of measuring range for cylindrical workpieces outside diameter
**** An error due to variation in workpiece position either in the optical axis direction or in the scanning direction.
***** The area given by [optical axis direction]×[scanning direction]

Note: When using extra-fine line measurement function (FINE), guide messages for setting the following will not be display: dual-measurement, segment designation, automatic workpiece detection and group judgment.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
LSM-500S Mitutoyo Laser Scan Micrometer

For a quote, please email us at  [email protected]
