Sales, Service and Repairs
NIST Traceable
ISO 17025 Accredited Calibration
NIST Traceable

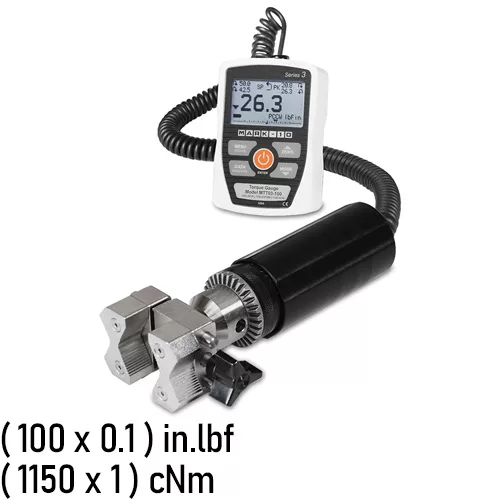

The MTT03C-100 Mark-10 Digital Cap Torque Gauge is a quick and economical solution for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from (16.5 to 39.4) mm / (0.65 to 1.55)” diameter.
Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for MTT03C-100 Digital Cap Torque Gauge at MRM Metrology, and save.
Buy MTT03C-100 Cap Torque Gauge now for the best price in Canada.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| ○ Ergonomic torque sensor with Jacobs chuck |
| ○ Peak torque values saved and displayed |
| ○ High-speed 2,000 Hz sampling rate |
| ○ USB data output of continuous or individual data points |
| ○ Programmable set points with pass/fail indicators |
| ○ Live load bar graphs with set point markers |
| ○ Peak memory for clockwise and counter clockwise readings |
| ○ Set points always displayed |
| ○ Configurable audio alarms and key tones |
| ○ MESUR® Lite data collection software included |
| ○ Battery or AC operation |
| Capacity x Resolution | 100 x 0.1 in.lbf ; 1600 x 2 in.ozf ; 1150 x 1 cNm |
| Accuracy | ± 0.5% of Full Scale |
| Cap dia. Range | (16.5 to 39.4) mm / (0.65 to 1.55) in |
| Sampling Rate | 2,000 Hz |
| Power | AC or rechargeable battery. The multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low |
| Backlight On | Up to 7 hours of continuous use |
| Backlight Off | Up to 24 hours of continuous use |
| Units of Measurement | lbFin, ozFin, Ncm |
| USB Output | Configurable to 115,200 baud. |
| Safe Overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Environmental Requirements | (5 to 45)°C / (40 to 100)°F, < 96% humidity (non-condensing) |
| Manufacturer’s Warranty | 3 years (See individual statement for further details) |
| Model | in.ozf | in.lbf | cNm |
| MTT03C-12 | 192 x 0.2 | 12 x 0.01 | 135 x 0.1 |
| MTT03C-50 | 800 x 1 | 50 x 0.5 | 570 x 1 |
| MTT03C-100 | 1600 x 2 | 100 x 0.1 | 1150 x 1 |
| Weight | 1.0 kg / 2.2 lb |
| Dimension | IN [MM] |
| Optional Items | |
| 15-1004 | MESUR™gauge software |
| AC1008 | Table top stand |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MTT03C-100 when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
MTT03C-100 Mark-10 Cap Torque Gauge
For a quote, please email us at [email protected]
