MTT01-50 Mark-10 Cap Torque Tester

$1,659.00

This price includes an ISO 17025 Calibration Certificate and free shipping in Canada.

The MTT01-50 Digital Cap Torque Tester is designed to measure application and removal torque of bottle caps up to (1.35 Nm / 12 in.lbf). Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ± 0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The MTT01-50 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
The MTT01-50 tester includes MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the MTT01-50 memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Made in the USA and comes with a 3 year manufacturer’s warranty.
Shop for MTT01-50 at MRM Metrology and use CAL MTT01-50 when ordering calibration services.

Made in USA
SPC
Free Shipping Canada
ISO17025 Free Calibration
Other Models

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

o Moveable 31 mm / 1.25″ length posts accommodate a wide range of sample shapes and sizes
o Available extended post lengths and other gripping options
o USB, RS-232, Mitutoyo, and analog outputs
o Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
o First / second peak detection for slip and breakaway torques in tamper evident closures
o 1,000-point data memory with statistics and outputs
o Password protection prevents unauthorized changes
o Programmable set point indicators and outputs for pass/ fail determination
o High-speed 7,000 Hz sampling rate accurately captures peak torque values
o Configurable audio alarms and key tones
o 5 selectable units of measurement
o MESUR® Lite data collection software included

Capacity x Resolution 5.7 x 0.005 N.m ; 50 x 0.02 in.lbf ; 800 x 0.5 in.ozf ; 58 x 0.05 cm.kgf ; 570 x 0.5 cNm
Accuracy ± 0.3% of Full Scale
Sampling Rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
Units of Measurement N.m, in.lbf, in.ozf, cm.kgf, cNm
USB / RS-232 Configurable up to 115,200 baud
Mitutoyo (Digimatic) Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog ±1 VDC, ±0.25% of full scale at capacity
General Purpose Three open drain outputs, one input
Set Points Three open drain lines.
Configurable Settings Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe Overload 150% of full scale (display shows “OVER” at 110% and above)
Environmental Requirements (5 to 45)°C / (40 to 100)°F, < 96% humidity (non-condensing)
Manufacturer’s Warranty 3 years (See individual statement for further details)

Model in.lbf in.ozf cm.kgf cNm N.m
MTT01-12 12 x 0.005 192 x 0.1 14 x 0.01 135 x 0.1 1.35 x 0.001
MTT01-25 25 x 0.01 400 x 0.2 28 x 0.02 290 x 0.2 2.9 x 0.002
MTT01-50 50 x 0.02 800 x 0.5 58 x 0.05 570 x 0.5 5.7 x 0.005
MTT01-100 100 x 0.05 1600 x 1 116 x 0.1 1150 x 0.5 11.5 x 0.005

Weight 3.8 kg / 8.4 lb

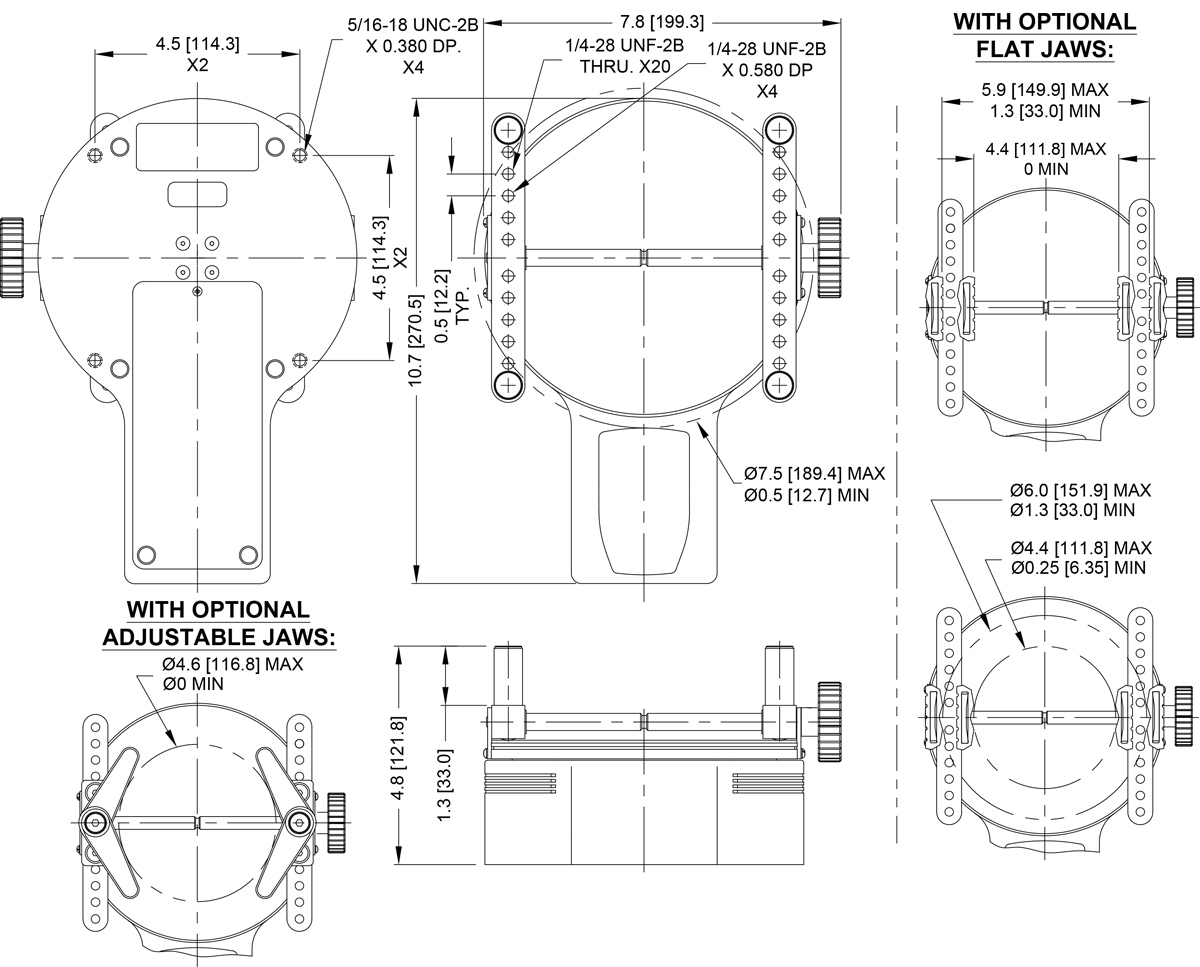

Dimensions IN [MM]


Included Items
CT004 Sample gripping posts, set of 4 posts
09-1165 USB cable
AC1030 AC Power Adapter
08-1026 Battery (Installed in Cap Torque Tester)
Optional Items
CT005, CT006 Extended length posts
CT001 Flat rubber jaws
CT003 Adjustable jaws
15-1004 MESUR®gauge software
CT002 Carrying case
AC1036 Calibration kit
AC1077 Connector cover kit

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MTT01-50 Mark-10 Cap Torque Tester

For a quote, please email us at  Service@MRMmetrology.com
