MTT03-10Z Mark-10 Torque Tester

MTT03-10Z Mark-10 Torque Gauge 10 in.ozf , 7 cNm , 7 mm.kgf

FREE ISO 17025 Calibration Certificate
FREE shipping in Ontario.

MTT03-10Z Mark-10 Torque Gauge, TT03 Series digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry. A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.

Made in the USA and comes with a three year manufacturer’s warranty.
Shop for MTT03-10Z Torque Gauge at MRM Metrology, and save.
Buy MTT03-10Z Gauge now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
ISO17025 Free Calibration


Other Models
SKU: MTT03-10Z Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Ergonomic torque sensor with Jacobs chuck
○ Peak torque values saved and displayed
○ High-speed 2,000 Hz sampling rate
○ USB data output of continuous or individual data points
○ Programmable set points with pass/fail indicators
○ Live load bar graphs with set point markers
○ Peak memory for clockwise and counter clockwise readings
○ Set points always displayed
○ Configurable audio alarms and key tones
○ MESUR® Lite data collection software included
○ Battery or AC operation
○ Safe overload: 150% of capacity
○ Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low

Capacity x Resolution 10 x 0.01 in.ozf , 7 x 0.005 cNm , 7 x 0.005 mm.kgf
Accuracy ± 0.5% of Full Scale
Sampling Rate 2,000 Hz
Power AC or rechargeable battery
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
USB Output Configurable to 115,200 baud
Weight 0.8 kg , 1.8 lb
Environmental Requirements (5 to 45)°C / (40 to 100)°F, < 96% humidity (non-condensing)
Manufacturer’s Warranty 3 years (See individual statement for further details)

Capacity x Resolution in.ozf in.lbf mm.kgf cNm
MTT03-10Z 10 x 0.01 7 x 0.005 7 x 0.005
MTT03-20Z 20 x 0.02 14 x 0.01 14 x 0.01
MTT03-50Z 50 x 0.05 36 x 0.05 36 x 0.05
MTT03-12 192 x 0.2 12 x 0.01 135 x 0.1
MTT03-50 800 x 0.5 50 x 0.05 570 x 0.5
MTT03-100 1600 x 1 100 x 0.1 1150 x 1

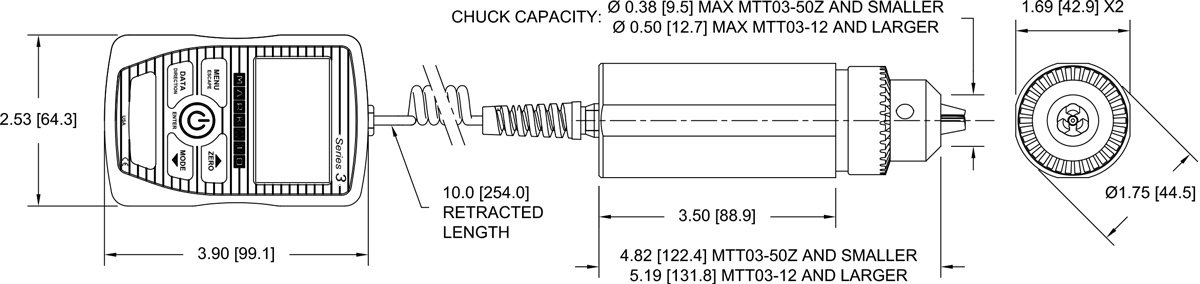

IN [MM]

Series TT03 Torque Gauges


Included Items
20-1025 Chuck key
Carrying case
09-1165 USB cable
AC1030 AC adapter
08-1026 Battery (Installed in Torque Gauge)
Optional Items
15-1004 MESUR®gauge software
>09-1165 Spare USB cable
08-1026 Spare rechargeable battery
AC1030 Spare AC adapter, 110V
20-1025 Spare chuck key for MTT03-12 – MTT03-100, size KK
20-1025-1 Spare chuck key for MTT03-10Z – MTT03-50Z, size KGA

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MTT03-10Z when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MTT03-10Z Mark-10 Torque Gauge

For a quote, please email us at  [email protected]
