CAD959.00

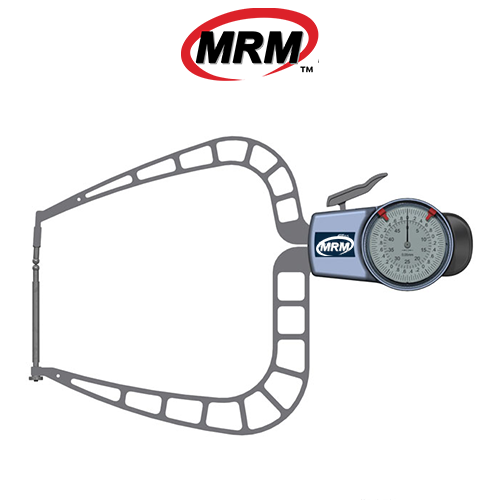

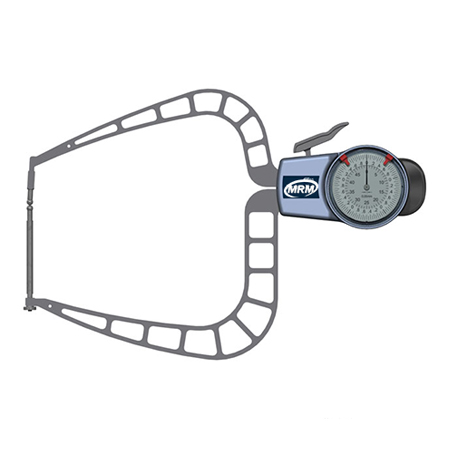

The MRM-D450F Mechanical External Caliper Gauge utilizes spring-loaded jaws to make constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements.
It comes with a two-year manufacturer’s warranty.
Shop for MRM-D450F Mechanical Caliper Gauge at MRM Metrology, and save.
Buy MRM-D450F External Gauge now for the best price.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| â—‹ Indicator should be used in conjunction with a setting ring or micrometer |
| â—‹ White dial face for easier, precise measurement readings |
| â—‹ Crystal is glare-free with a scratch-resistant coating |
| â—‹ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet |
| â—‹ Supplied in a fitted plastic case |

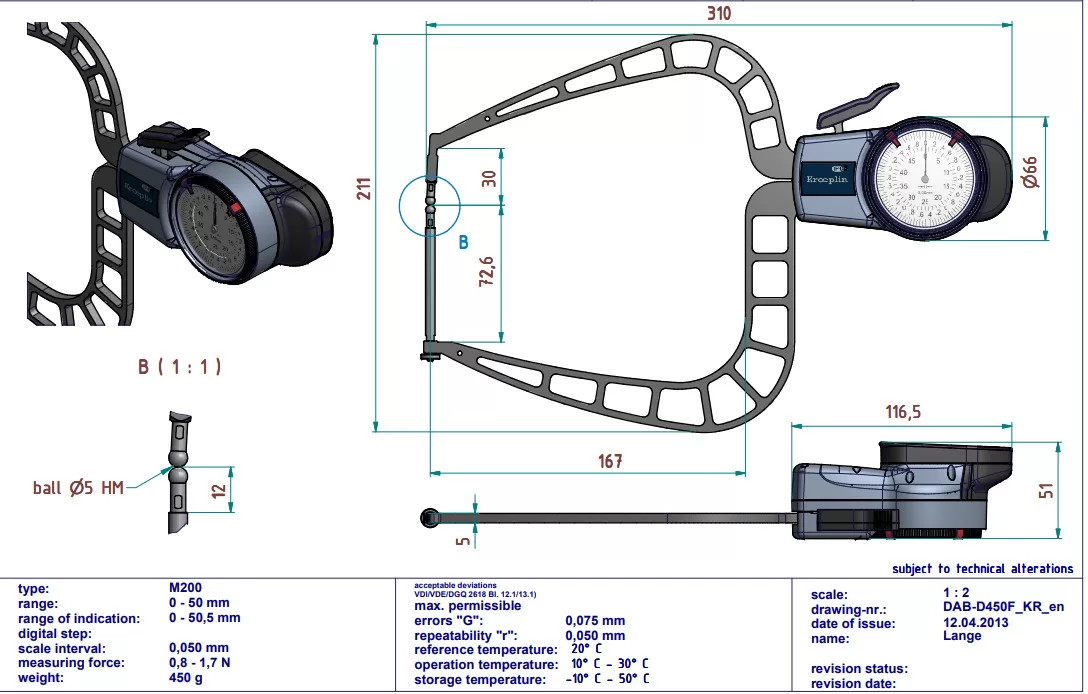

| Range | (0 to 50) mm |
| Accuracy | 0.05 mm |
| Graduation | 0.05 mm |
| Repeatability Limit R | 0.025 mm |
| Range of Indication Azb | (0 to 50.5) mm |
| Measuring Force F min. | 0.8 N |
| Measuring Force F max. | 1.7 N |
| Type of Measuring Contact Movable | HM-Ball Ø 3 mm |
| Measuring Contact Movable Hb | 30 mm |
| Measuring Contact Fixed Hf | 30 mm |
| Weight | 430 g |
| Measuring Depth Max. L | 167 mm |
| Reference Temperature | 20 °C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP65 |
| Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-D450F when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
MRM-D450S Mechanical External Caliper Gauge
For a quote, please email us at  [email protected]
