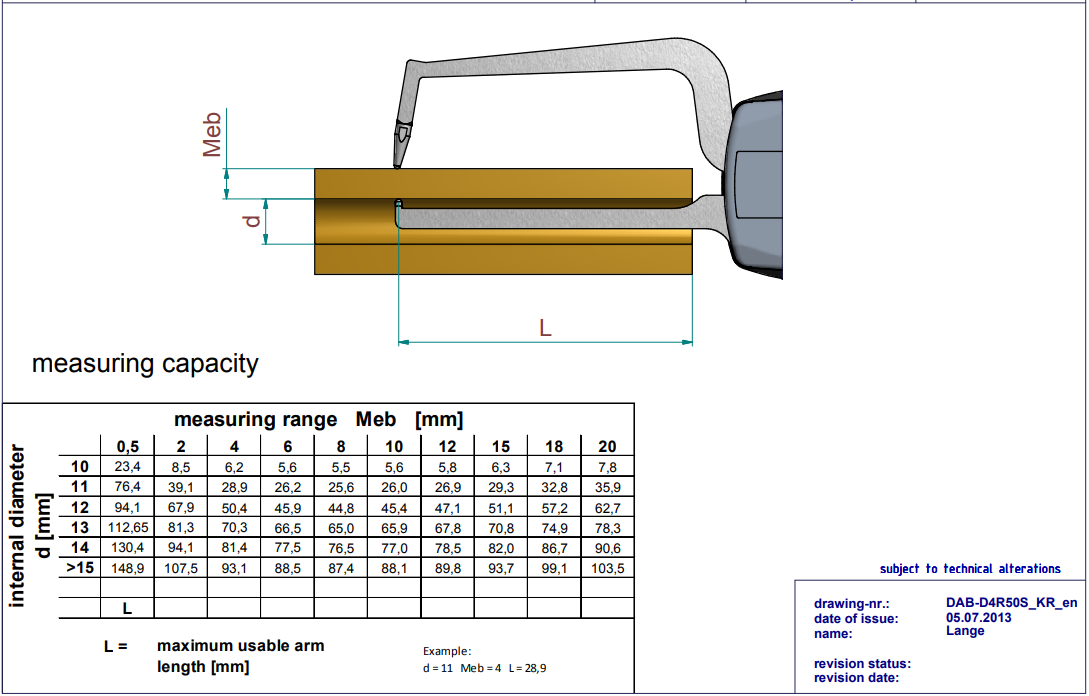

- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Indicator should be used in conjunction with a setting ring or micrometer |
| ○ White dial face for easier, precise measurement readings |
| ○ Crystal is glare-free with a scratch-resistant coating |
| ○ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet |
| ○ Supplied in a fitted plastic case |
| Range | (0 to 50)mm |
| Accuracy | 0.05 mm |
| Graduation | 0.05 mm |
| Range of Indication Azb | (0 to 50.5) mm |
| Repeatability Limit R | 0.025 mm |
| Measuring Force F min. | 0.8 N |
| Measuring Force F max. | 1.7 N |
| Type of Measuring Contact Movable | HM-Ball Ø 3 mm |
| Measuring Contact Movable Hb | 30 mm |
| Measuring Contact Fixed Hf | 30 mm |
| Weight | 400 g |
| Measuring Depth Max. L | 169 mm |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP65 |
| Warranty | Two years limited manufacturer’s warranty |
209-922
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc. ○ Use CAL MRM-D4R50S when requesting calibration services from MRM Metrology.
Calibration and Repair Services

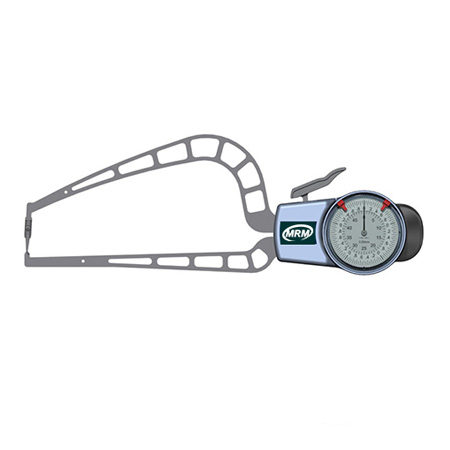

MRM provides Calibration and Repair Services for the MRM-D4R50S External Dial Caliper Gauge
For a quote, please email us at [email protected]
