MRM-D4R50S Caliper Gauges

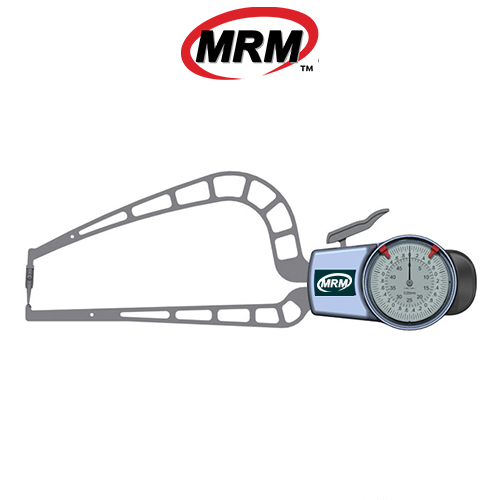

MRM-D4R50 External Dial Caliper Gauge (0 to 50) mm

CAD 829.00

The MRM-D4R50 External Dial Caliper Gauge utilizes spring-loaded jaws to make constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements.

It comes with a two-year manufacturer’s warranty.
Shop for MRM-D4R50 Dial Caliper Gauge at MRM Metrology, and save.
Buy MRM-D4R50 Caliper Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: MRM-D4R50 Category:

Product Description

  • Features
  • Specifications

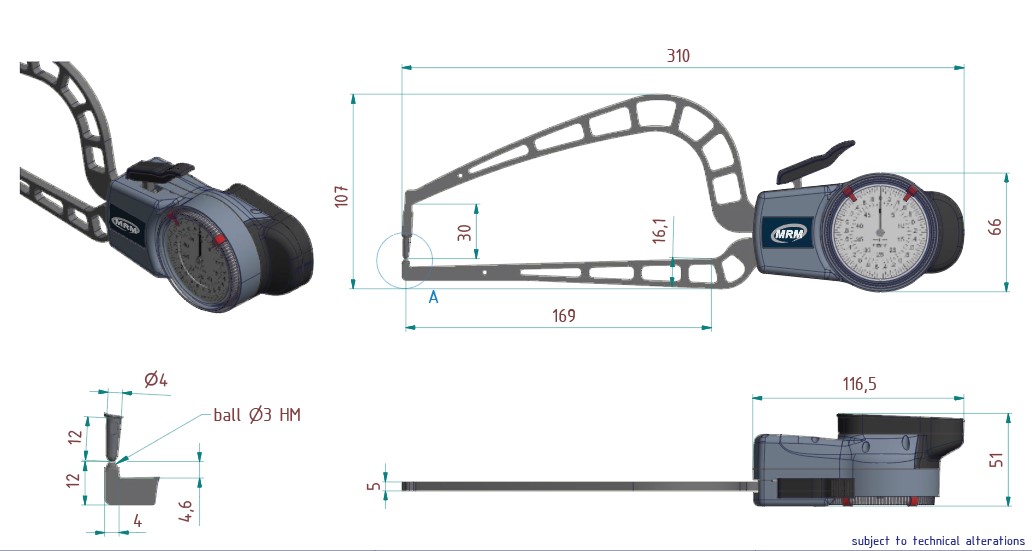

  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Measurement of tube wall thickness

Range (0 to 50) mm
Graduation 0.05 mm
Accuracy ± 0.05 mm
Range of Indication Azb (0 to 50.5) mm
Repeatability Limit R 0.25 mm
Measuring Force F min. 0.8 N
Measuring Force F max. 7 N
Type of Measuring Contact Movable HM-Ball Ø 3 mm
Measuring Contact Movable Hb 30 mm
Type of Measuring Contact Fixed HM-Ball Ø 3 mm
Measuring Contact Fixed Hf 4.3 mm
Measuring Depth Max. L 169 mm
Weight 200 g
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP65
Manufacturer’s Warranty Two years limited manufacturer’s warranty

209-912

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-D4R50 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-D4R50 Dial External Caliper Gauge

For a quote, please email us at  [email protected]
