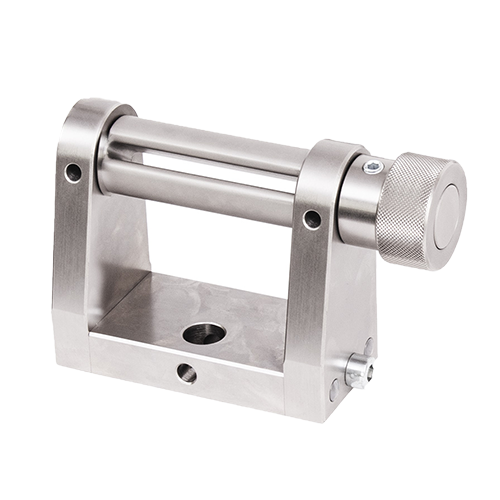

G1111 Mark-10 Ribbon Wrap Grip

The G1111 secures textile webbing, tape, and braided materials typically used in construction, shipping, and other industrial uses. The grip is ideal for conformance to ASTM D6775 and related standards, accommodating a wide range of sample widths and forces up to 2,000 lbF (10 kN). Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.

Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1111 at MRM Metrology.

SKU: G1111 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Secures webbing, tape, and braided materials for pull testing, as per ASTM D6775

Capacity 2,000 lbf ; 10 kN
Weight 2.4 kg ; 5.2 lb
HS Code 9024800000
ECCN EAR99
Country of Origin USA

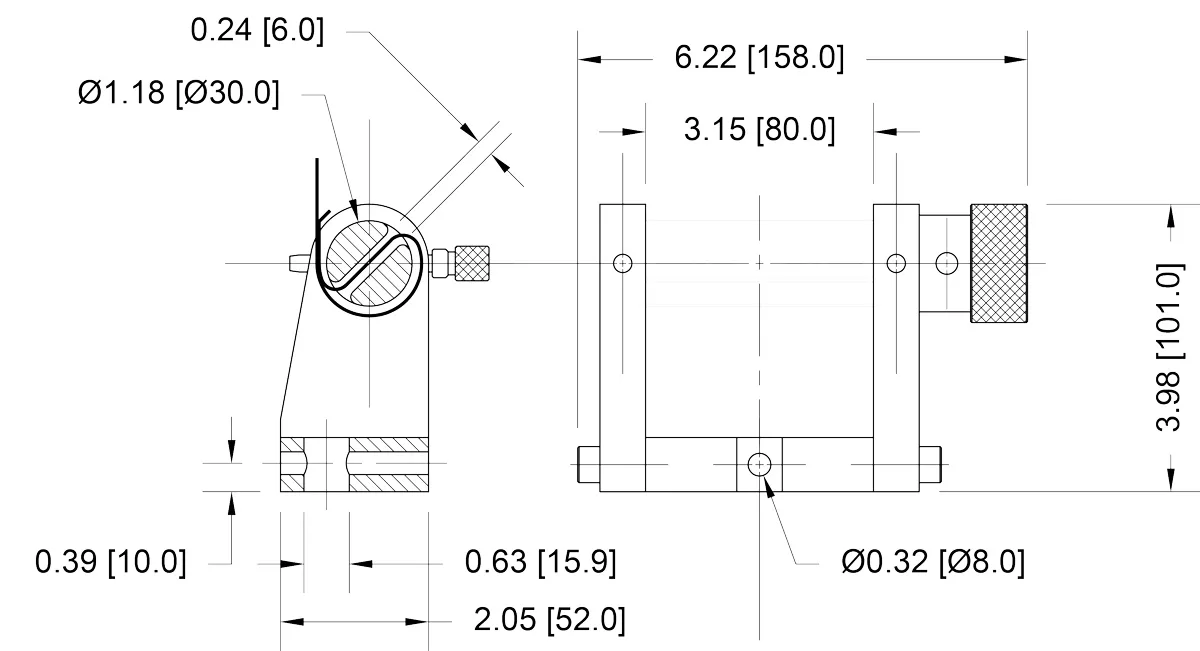

IN [MM]

(1) Fixture assembly
(1) Eye end anchor pin
(2) Anchor pin for sample drum
