G1090 Mark-10

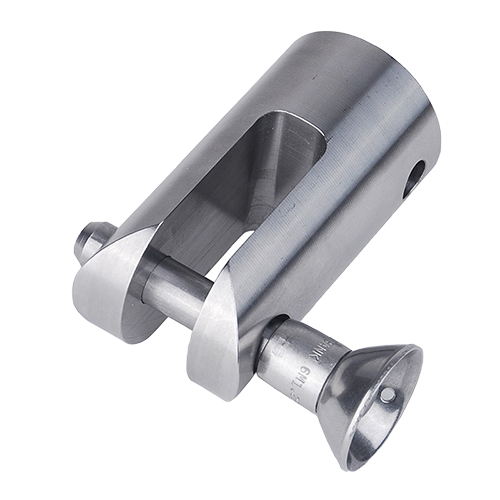

G1090 Mark-10 High Capacity Clevis Grip

○ Lowest price

The G1090 grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing. Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for G1090 High Capacity Clevis Grip at MRM Metrology and save.
Buy G1090 Grip now for the best price in Canada.

Click on [email protected] to request a quotation.

SKU: G1090 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ This grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications
○ A spring loaded pin with ball plunger locks into place, for added safety during testing
○ Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.

Capacity 2,000 lbf ; 9 kN
Weight 0.35 kg ; 0.78 lb
HS Code 9024800000
ECCN EAR99
Country of Origin USA

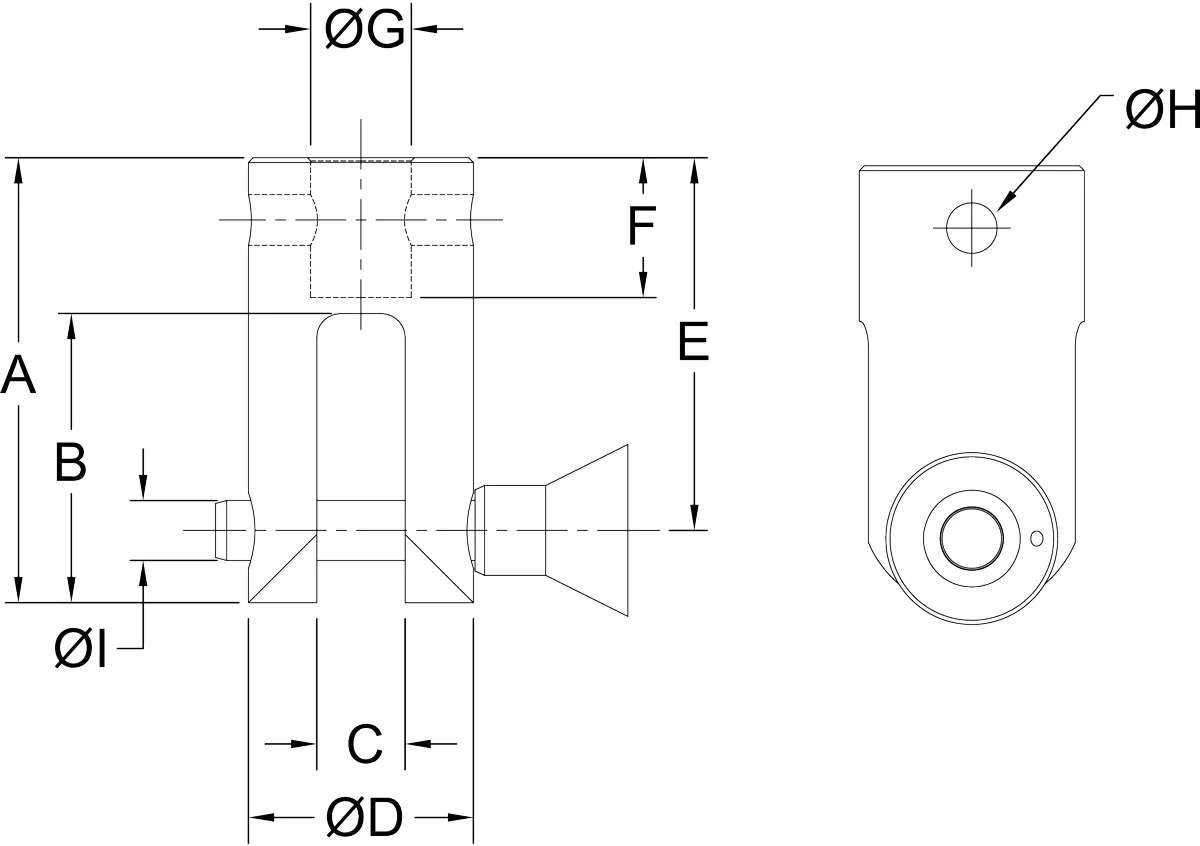

A B C ØD E F ØG ØH ØI
70.4 mm ; 2.77″ 45.7 mm ; 1.8″ 14.0 mm ; 0.55″ 35.6 mm ; 1.40″ 58.9 mm ; 2.32″ 22.1 mm ; 0.87″ 15.9 mm ; 0.63″ 8.0 mm ; 0.32″ 9.7 mm ; 0.38″


Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation
Mount to common test frames, load cells, and force gauges
