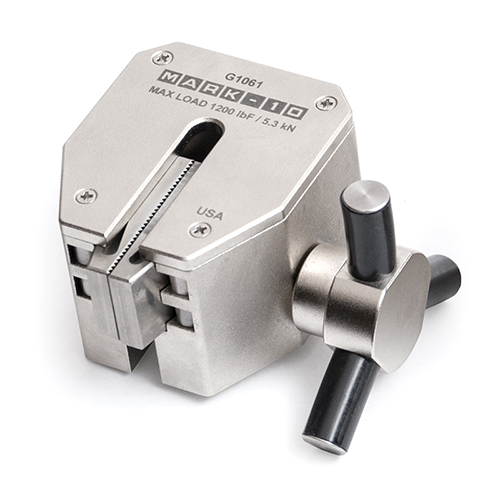

The G1061 duty self-tightening grip is ideal for tensile testing of a wide range of materials. Select from rubber or serrated, hardened steel jaw faces. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics. The spring loaded jaws open with a highly ergonomic rack and pinion lever mechanism. The smooth and easy operation of the lever greatly reduces operator hand fatigue.
Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for G1061 Wedge Grip at MRM Metrology and save.
Buy G1061 Grip now for the best price in Canada.
Click on [email protected] to request a quotation.
| ○ Unique jam-free design |
| ○ Fully enclosed |
| ○ Hardened, serrated steel jaw faces, or rubber jaw faces for film and paper tensile testing applications |
| ○ Thru slot for samples of unlimited width |
| ○ Ergonomic handle |
| Capacity | 50 lbf |
| Weight | 0.36 kg , 0.8 lb |
| Jaw Material ; Hardness | 416 SS , 55 RC |
| HS Code | 9024800000 |
| ECCN | EAR99 |
| Country of Origin | USA |
| Model | Capacity lbf ; kN | A | B | C | D | E | F | G | Included Adapters |
| G1061-1 | 200 , 0.9 | 1.95 , 49.5 | 2.45 , 62.2 | 0.375 , 9.5 | 0.95 , 24.1 | 5/16-18 , UNC | (0 to 0.25) , (0 to 6.4) | 0.62 , 15.7 | #10-32F to 5/16-18M adapter. #10-32 M/M stud with jam nuts. 5/16-18 M/M stud with jam nuts |
| G1061 | 1,200 , 5.3 | 1.95 , 49.5 | 2.45 , 62.2 | 0.75 , 19.1 | 1.5 , 38.1 | 1/2-20 , UNF | (0 to 0.25) , (0 to 6.4) | 1.00 , 25.4 | #10-32F to 5/16-18M adapter, #10-32 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts, 5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts |
| G1061-2 | 2,000 , 9.0 | 1.95 , 49.5 | 2.45 , 62.2 | 1.00 , 25.4 | 1.75 , 44.5 | 1/2-20 , UNF | (0 to 0.25) , (0 to 6.4) | 1.13 , 28.7 | 5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
| G1061-3 | 50 , 0.25 | 1.95 , 49.5 | 2.45 , 62.2 | 1.00 , 25.4 | 1.75 , 44.5 | 1/2-20 ; UNF | (0 to 0.20) , (0 to 5.1) | 1.13 , 28.7 | 5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
| Swivel adapter | Swiveling action provides proper sample alignment in pull testing applications |
| Eye end adapters | Allow for quick grip installation and removal, and prevent grip rotation Mount to common test frames, load cells, and force gauges |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL G1061 when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
G1061 Mark-10 Wedge Grip
For a quote, please email us at [email protected]
