G1061-3 Mark-10

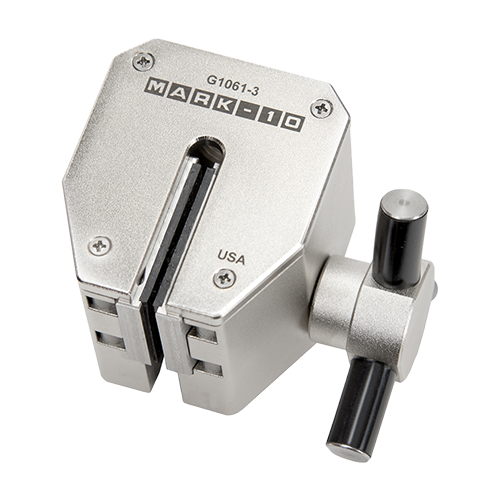

G1061-3 Mark-10 Wedge Grip

○ Lowest price

The G1061-3 duty self-tightening grip is ideal for tensile testing of a wide range of materials. Select from rubber or serrated, hardened steel jaw faces. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics. The spring loaded jaws open with a highly ergonomic rack and pinion lever mechanism. The smooth and easy operation of the lever greatly reduces operator hand fatigue.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for G1061-3 Wedge Grip at MRM Metrology and save.
Buy G1061-3 Grip now for the best price in Canada.

Click on [email protected] to request a quotation.

Other Models

SKU: G1061-3 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Unique jam-free design
○ Fully enclosed
○ Hardened, serrated steel jaw faces, or rubber jaw faces for film and paper tensile testing applications
○ Thru slot for samples of unlimited width
○ Ergonomic handle

Capacity 50 lbf ; 250 N
Weight 0.41 kg ; 0.9 lb
Jaw Material ; Hardness Neoprene rubber, durometer = 70
HS Code 9024800000
ECCN EAR99
Country of Origin USA

Model Capacity lbf ; kN A B C D E F G Included Adapters
G1061-1 200 ; 0.9 1.95 ; 49.5 2.45 ; 62.2 0.375 ; 9.5 0.95 ; 24.1 5/16-18 ; UNC (0 to 0.25) ; (0 to 6.4) 0.62 ; 15.7 #10-32F to 5/16-18M adapter.
#10-32 M/M stud with jam nuts.
5/16-18 M/M stud with jam nuts
G1061 1,200 ; 5.3 1.95 ; 49.5 2.45 ; 62.2 0.75 ; 19.1 1.5 ; 38.1 1/2-20 ; UNF (0 to 0.25) ; (0 to 6.4) 1.00 ; 25.4 #10-32F to 5/16-18M adapter,
#10-32 M/M stud with jam nuts,
5/16-18 M/M stud with jam nuts,
5/16-18F to 1/2-20M adapter,
1/2-20 M/M stud with jam nuts
G1061-2 2,000 ; 9.0 1.95 ; 49.5 2.45 ; 62.2 1.00 ; 25.4 1.75 ; 44.5 1/2-20 ; UNF (0 to 0.25) ; (0 to 6.4) 1.13 ; 28.7 5/16-18F to 1/2-20M adapter,
1/2-20 M/M stud with jam nuts,
5/16-18 M/M stud with jam nuts
G1061-3 50 ; 0.25 1.95 ; 49.5 2.45 ; 62.2 1.00 ; 25.4 1.75 ; 44.5 1/2-20 ; UNF (0 to 0.20) ; (0 to 5.1) 1.13 ; 28.7 5/16-18F to 1/2-20M adapter,
1/2-20 M/M stud with jam nuts,
5/16-18 M/M stud with jam nuts


Swivel adapter Swiveling action provides proper sample alignment in pull testing applications
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation
Mount to common test frames, load cells, and force gauges
