F755-EM Mark-10 Motorized Force Tester, 3.4 kN / 750 lbf

CAD 11,359.00

FREE ISO 17025 Calibration Certificate when purchased with a Force Sensor
FREE shipping in Canada

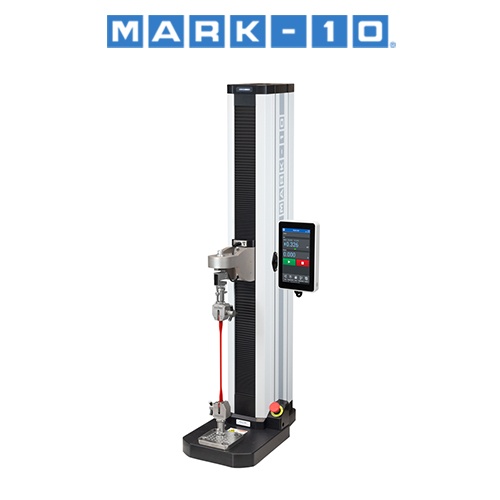

The F755-EM Motorized Force Tester is used for tension and compression force testing applications with force capacity up to 750 lbf [3.4 kN].

Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface – no PC or force gauge is required. For unique needs, run the tester from a PC with your own custom application utilizing EasyMESUR® serial command library.

Sample setup and fine positioning are a breeze with available FollowMe® force-based positioning – using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.

Engineered around a modular function platform, the EasyMESUR® run screen can be arranged with large, simple controls – or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more. Purchase functions and packages at time of order or enable them in the field via activation codes. All testers are shipped in a 160-hour evaluation mode, in which all functions are available.

Generous travel, clearance, and depth dimensions accommodate samples of various shapes and properties. Modular mechanical design accommodates single- and double-column extensions for oversized specimens.

Select from a broad range of optional force sensor capacities and an expansive array of grips and fixtures.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for F755-EM Force Tester at MRM Metrology and save.
Buy F755-EM now for the lowest price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
Free Shipping Canada
ISO 17025



Force Sensors Grips and Attachments
Optional Functions

Other Models
SKU: F755-EM Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

Rigid and Precise By Design Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ± 0.002 in ; 0.05 mm under any load, at any position.
Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
Conveniently modular Frame bases can be removed to accommodate column extensions and alternative mounting configurations. Most electronics are housed in a self-contained enclosure, easily accessed and replaced if needed. Integrated T-slots along the column accommodate add-ons.
Limit switches Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
Easy-to-service electronics Most electronics are housed in an integrated module, easily replaced without special tools or processes.

Load Capacity 750 lbf , 3.4 kN
Maximum Travel 813 mm , 32.0″
Standard Speed Range (0.5 to 24) in/min, (10 to 600 ) mm/min
Optional Speed Range (0.001 to 60) in/min, (0.02 to 1525 ) mm/min
Load Accuracy (% of full scale) Test frame: ± 0.1%
Force sensor : Series FS05: ± 0.1% ; Series R07: ± 0.15%
Load Sampling Rate 5000 Hz
Data Acquisition Rate 100 Hz
Speed Accuracy: ± 0.2% of setting. virtually no variation with load
Position Accuracy: ±0.006″ [0.15 mm], at any load or position
Speed Accuracy ± 0.2% of setting. virtually no variation with load
Postion Accuracy ±0.006″ [0.15 mm], at any load or position
Distance Resolution 0.02 mm , ±0.001″
Limit Switch Repeatability 0.03 mm ; ±0.001″
Power Universal input 100-240 VAC, 50/60 Hz, 300W
Fuse Type 4A, 3AG, SLO BLO
Weight (test frame only) 83 kg , 184 lb
Shipping Weight 107 kg ; 235 lb
Environmental Conditions Indoor use only
Up to 6,500 ft /2,000 m above sea level
Temperature range: (5 to 35)°C ; (40 to 95)°F
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ± 10% of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Conformance CE, UKCA
Manufacturer’s Warranty 3 years (see individual statement for further details)

IN [MM]


Model A B
F755-EM 50.85″ , 1291.6 mm (8.13 to 40.13)” , (206.4 to 1019.2) mm
F755S-EM 33.89″ , 848.1 (8.13 to 22.33)” , (206.4 to 567.1) mm
F1505-EM 51.35″ , 1304.3 mm (8.13 to 40.13)” , (206.4 to 1019.2) mm
F1505S-EM 33.89″ , 860.9 (8.13 to 22.33)” , (206.4 to 567.1) mm


In the Box
(1) Control panel, mounting bracket, and hardware
(1) USB cable
(1) Eye end kit for base. Includes: (1) eye end, (1) anchor pin, (2) lock rings
(2) Spanner wrench
(1) Power cord
(1) Allen wrench set

Optional Force Sensors – Series R07 lbf ozf gf kgf N kN
MR07-50 50 x 0.02 lbf 800 x 0.5 ozf 25000 x 10 gf 25 x 0.01 kgf 250 x 0.1 N
MR07-100 100 x 0.05 lbf 1600 x 1 ozf 50000 x 20 gf 50 x 0.02 kgf 500 x 0.2 N
MR07-200 200 x 0.1 lbf 3200 x 2 ozf   100 x 0.05 kgf 1000 x 0.5 N 1 x 0.0005 kN
MR07-300 300 x 0.2 lbf 4800 x 5 ozf   150 x 0.1 kgf 1500 x 1 N 1.5 x 0.001 kN
MR07-500 500 x 0.2 lbf 8000 x 5 ozf   250 x 0.1 kgf 2500 x 1 N 2.5 x 0.001 kN
MR07-700 750 x 0.5 lbf 12000 x 10 ozf   375 x 0.2 kgf 3750 x 2 N 3.75 x 0.002 kN
MR07-1000 1000 x 0.5 lbf 16000 x 10 ozf   500 x 0.2 kgf 5000 x 2 N 5 x 0.002 kN
MR07-1000 1500 x 1 lbf 24000 x 20 ozf   750 x 0.5 kgf 7500 x 5 N 7.5 x 0.005 kN

Optional Force Sensors – Series FS05 lbf ozf gf kgf N kN mN
FS05-012 0.12 x 0.00005 lbf 2 x 0.001 ozf 50 gf   0.5 x 0.0002 N   500 x 0.2 mN
FS05-025 0.25 x 0.0001 lbf 4 x 0.002 ozf 100 x 0.05 gf   1 x 0.0005 N   1000 x 0.5 mN
FS05-05 0.5 x 0.0002 lbf 8 x 0.005 ozf 250 x 0.1 gf   2.5 x 0.001N   2500 x 1 mN
FS05-2 2 x 0.001 lbf 32 x 0.02 ozf 1000 x 0.5 gf 1 x 0.0005 kgf 10 x 0.005 N
FS05-5 5 x 0.002 lbf 80 x 0.05 ozf 2500 x 1 gf 2.5 x 0.001 kgf 25 x 0.01 N
FS05-10 10 x 0.005 lbf 160 x 0.1 ozf 5000 x 2 gf 5 x 0.002 kgf 50 x 0.02 N
FS05-20 20 x 0.01 lbf 320 x 0.2 ozf 10000 x 5 gf 10 x 0.005 kgf 100 x 0.05 N
FS05-50 50 x 0.02 lbf 800 x 0.5 ozf 25000 x 10 gf 25 x 0.01 kgf 250 x 0.1 N
FS05-100 100 x 0.05 lbf 1600 x 1 ozf 50000 x 20 gf 50 x 0.02 kgf 500 x 0.2 N
FS05-200 200 x 0.1 lbf 3200 x 2 ozf   100 x 0.05 kgf 1000 x 0.5 N 1 x 0.0005 kN
FS05-300 300 x 0.1 lbf 4800 x 2 ozf   150 x 0.05 kgf 1500 x 0.5 N 1.5 x 0.0005 kN
FS05-500 500 x 0.2 lbf 8000 x 5 ozf   250 x 0.1 kgf 2500 x 1 N 2.5 x 0.001 kN

Optional Equipment
Safety Shield (AC1092-1, AC1092-2) Provides pinch and sample debris protection for the operator. Includes an electrical interlock, preventing test stand operation while the door is open.
USB Hub (AC1093) Test frame-mounted 4-port USB hub improves cable management and conveniently accommodates peripherals, such as a flash drive, barcode scanner, etc. Compatible with all Series F test frames.
Eye end Adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Third-party Sensor Adapter (PTAF) Adapt a third-party party force sensor to Series F frames and Models M5I and M7I indicators.

â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL F755-EM when requesting calibration services from MRM Metrology.



Calibration and Repair Services

MRM provides Calibration and Repair Services for the
F755-EM Mark-10 Motorized Force Tester

For a quote, please email us at  [email protected]
