Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| Compatible with all Mark-10 force gauges, accessories and grips |
| Mounting holes for bench mounting modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting |
| Removable base plate with 25 #10-32 threaded holes for fixture mounting |
| Competitor force gauge mounting kits are available |
| Range | 1000 N , 200 lbf |
| Maximum Force | 1 kN , 200 lbf |
| Maximum Travel | 330 mm , 13″ |
| Travel Rate | 1.27 mm , 0.05″ hand-wheel revolution |
| HS code | ES30: 9024900000 ESM001, ESM004, ESM003-1,-2,-3: 9024800000 |
| Manufacturer’s Warranty | 3 years (See individual statement for further details) |
IN [MM]
| Weight | 17 lb [7.7 kg] |
| Included Items | |
| G1024 | Extension rod, 2” |
| G1028 | Small hook |
| G1038 | Medium hook |
| G1009 | Compression plate, 2” diameter |
| G1039 | Coupling, #10-32F/F |
| G1030 | Thread adapter, 5/16-18M to #10-32F |
| Allen wrench set | |
| Hand-wheel | |
| 4 Thumb screw for force gauge/indicator | |
| 2 Thumb screw for limit switch | |
| Control panel | |
| Control panel mounting bracket and hardware | |
| Power cord | |
| Optional Items | |
| ESM001 | Digital travel display, 6″ x 0.0005 (150 mm x 0.01) |
| ESM004 | Digital travel display, 12″ x 0.0005 (300 mm x 0.01) |
| ESM003-1 | Column extension for ESM/ES30, 6″ |
| ESM003-2 | Column extension for ESM/ES30, 12″ |
| ESM003-3 | Column extension for ESM/ES30, 24″ |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL ES30 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

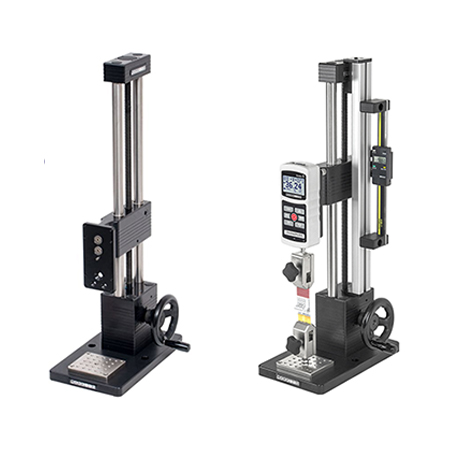

ES30 Mark-10 Manual Test Stand, Wheel-Operated
For a quote, please email us at [email protected]
