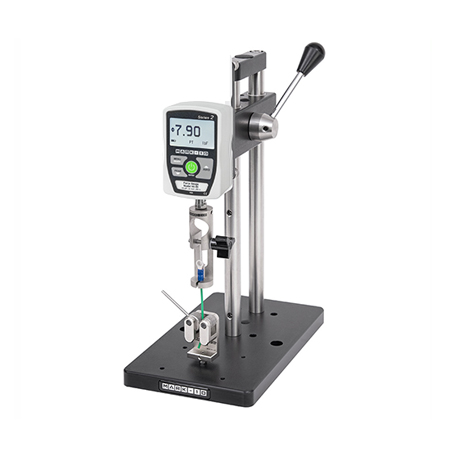

ES10_M2-100 Mark-10 Test Stand with Digital Force Gauge, 500 N / 100 lbf / 50 kgf

CAD 1,345.00

The ES10 Force Test Stand is a versatile and economical solution for most compression and tensile testing applications. It accepts a variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand-wheel operation enables the user to easily and accurately test up to 100 lbf (500 N) of force.

The M2-100 Digital Force Gauge is designed for tension and compression force testing applications with safe overload protection to 200% of its capacity. Peak tension and compression readings are easily obtained. An ergonomic, reversible aluminum housing allows for hand-held use or fixture mounting, rugged enough for applications in both production and laboratory environments.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for ES10_M2-100 Test Stand with Force Gauge at MRM Metrology, and save.
Buy ES10_M2-100 Test Stand with Force Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA


ES10 Test Stand
M2-100 Force Gauge

Other Models

SKU: ES10_M2-100 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

Digital Force Gauge
○ Calculates peak tension and compression values
○ 3 selectable units of measurement: N, lbf, kgf
○ Ultra-compact, ergonomic housing
○ Configurable default measurement unit and mode
○ 500 Hz sampling rate
○ Large, backlit graphic display with auto-dimming
○ Powered by 9V battery or available AC adapter
○ Reversible housing for alternate load cell orientation
Mechanical Test Stand
○ Mounting holes for bench mounting modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
○ Removable base plate with 25 #10-32 threaded holes for fixture mounting
○ Competitor force gauge mounting kits are available

Digital Force Gauge
Capacity 500 N , 100 lbf, 50 kgf
Resolution 1 N , 0.1 lbf, 0.1 kgf
Accuracy ± 0.5% of Full Scale
Sampling Rate 500 hZ
Power AC or 9V non-rechargeable battery, with multi-step low battery indicator
Backlight On Up to 24 hours
Backlight Off Up to 92 hours
Units of Measurement N, lbf, kgf
Safe Overload Protection 200% of Full Scale (Display shows “OVER” at 110% and above)
Weight 0.33 kg , 0.7 lb
Included Items 9V battery, quick-start guide, resource CD, certificate of conformance
Environmental Requirements (40 to 100)°F, max. 96% humidity, non-condensating
Manufacturer’s Warranty Three years (See individual statement for further details)
Mechanical Test Stand
Maximum Force 100 lbf , 500 N
Maximum Travel 9″ , 229 mm
Travel Rate 26.7 mm , 1.050″ / lever rev
Manufacturer’s Warranty Three years (See individual statement for further details)

Digital Force Gauge Load Cell Thread
M2-2 – M2-200 #10-32 UNF


Mechanical Test Stand in [mm]


Included Items for Force Gauge
AC1030 AC Power Adapter
08-1026 Rechargeable Battery (Installed in Force Gauge)
Optional Items for Force Gauge
AC1030 AC adapter, 110V US
AC1031 AC adapter, 220V Euro
AC1032 AC adapter, 220V UK
AC1035 AC adapter, 220V Australian
12-1049 Carrying Case
AC1052 Mounting Plate Kit
G1038 Medium Hook, #10-32M (requires G1039)
G1039 Coupling, #10-32F/F
G1029 Flat Head, #10-32F
G1026 Cone, #10-32F
G1025 Chisel Point, #10-32F
G1027 V-groove, #10-32F
G1024 Extension Rod, 5″, #10-32F
23-1031-2 Attachments Kit (G1024 through G1038)

A wide range of test stands and gripping fixtures
Attachments: Available individually or as a kit. Select from a hook, flat, cone, chisel, v-groove and extension rod
AC Adapters: Select from 110V US, 220V Euro, 220V UK or 220V Australian
Carrying Case: Cushioned hard plastic carrying case provides storage space for the gauge, AC adapter and attachments
Mounting Plate: For mounting Mark-10 gauges to a fixture or testing system. Includes mounting hardware. Note: Gauge mounting plates are included with Mark-10 test stands

Included Items for Test Stand
Allen wrench set
Lever
Thumb screw for force gauge

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL ES10_M2-100 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
ES10_M2-100 Mark-10 Test Stand with Force Gauge

For a quote, please email us at  [email protected]
