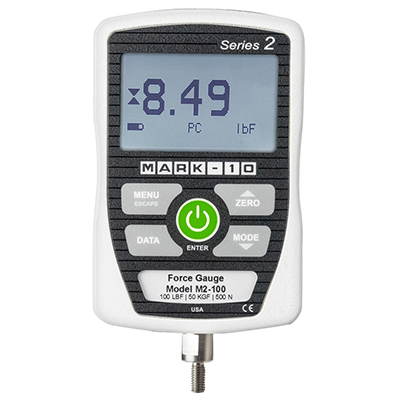

M2-100 Mark-10 Digital Force Gauge, 500 N / 100 lbf / 50 kgf

CAD 615.00

FREE Shipping in Ontario.

The M2-100 Digital Force Gauge is used for tension and compression force testing applications with safe overload protection to 200% of its capacity. Peak tension and compression readings are easily obtained. An ergonomic, reversible aluminum housing allows for hand-held use or fixture mounting. Rugged enough for applications in both production and laboratory environments.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for M2-100 Force Gauge at MRM Metrology, and save.
Buy M2-100 Force Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
Free Shipping Ontario

Grips and Attachments

Other Models
SKU: M2-100 Category: Tags: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ Calculates peak tension and compression values
○ Units of Measurement (selectable): N, lbf, kgf
○ Ultra-compact, ergonomic housing
○ Configurable default measurement unit and mode
○ 500 Hz sampling rate
○ Large, backlit graphic display with auto-dimming
○ Powered by 9V battery or available AC adapter
○ Reversible housing for alternate load cell orientation
Capacity x Resolution 500 x 0.5 N , 100 x 0.1 lbf , 50 x 0.05 kgf
Accuracy ± 0.5% of Full Scale
Sampling Rate 500 Hz
Power AC or 9V non-rechargeable battery, with multi-step low battery indicator
Backlight On Up to 24 hours
Backlight Off Up to 92 hours
Units of Measurement N , lbf , kgf
Safe Overload Protection 200% of Full Scale (Display shows “OVER” at 110% and above)
Weight 0.33 kg , 0.7 lb
Included Items 9V battery, quick-start guide, resource CD, certificate of conformance
Environmental Requirements (40 to 100)°F, max. 96% humidity, non-condensating
Manufacturer’s Warranty Three years (See individual statement for further details)
Capacity x Resolution lbf kgf N
M2-2 2 x 0.002 1 x 0.001 10 x 0.01
M2-5 5 x 0.005 2.5 x 0.002 25 x 0.02
M2-10 10 x 0.01 5 x 0.005 50 x 0.05
M2-20 20 x 0.02 10 x 0.01 100 x 0.1
M2-50 50 x 0.05 25 x 0.02 250 x 0.2
M2-100 100 x 0.1 50 x 0.05 500 x 0.5
M2-200 200 x 0.2 100 x 0.1 1000 x 1
M2-500 500 x 0.5 250 x 0.2 2500 x 2

Model Load Cell Thread
M2-2 – M2-100 #10-32 UNF

Included Items
AC1030 AC Power Adapter
08-1026 Battery (Installed in Force Gauge)
Optional Items
Series 2 Force Gauges
AC1030 AC adapter, 110V US
AC1031 AC adapter, 220V Euro
AC1032 AC adapter, 220V UK
AC1035 AC adapter, 220V Australian
12-1049 Carrying case
AC1052 Mounting plate kit
M2-2 to M2-100 Force Gauges
G1038 Medium hook, #10-32M (requires G1039)
G1039 Coupling, #10-32F/F
G1029 Flat head, #10-32F
G1026 Cone, #10-32F
G1025 Chisel point, #10-32F
G1027 V-groove, #10-32F
G1024 Extension rod, 5″, #10-32F
23-1031-2 Attachments kit (qty. 1 of G1038 through G1024)
M2-200 to M2-500 Force Gauges
G1035 Large hook, 5/16-18M (requires G1037)
G1037 Coupling, 5/16-18F/F
G1036 Flat head, 5/16-18F
G1033 Cone, 5/16-18F
G1032 Chisel point, 5/16-18F
G1034 V-groove, 5/16-18F
G1031 Extension rod, 5″, 5/16-18F
23-1031-3 Attachments kit (qty. 1 ea. of G1035 through G1031)

A wide range of test stands and gripping fixtures
Attachments: Available individually or as a kit. Select from a hook, flat, cone, chisel, v-groove, and extension rod
AC Adapters: Select from 110V US, 220V Euro, 220V UK, or 220V Australian
Carrying Case: Cushioned hard plastic carrying case provides storage space for the gauge, AC adapter, and attachments
Mounting Plate: For mounting Mark-10 gauges to a fixture or testing system. Includes mounting hardware. Note: Gauge mounting plates are included with Mark-10 test stands

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL M2-100 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
M2-100 Mark-10 Digital Force Gauge

For a quote, please email us at  [email protected]
