810-306 Mitutoyo Portable Hardness Tester HH-V400

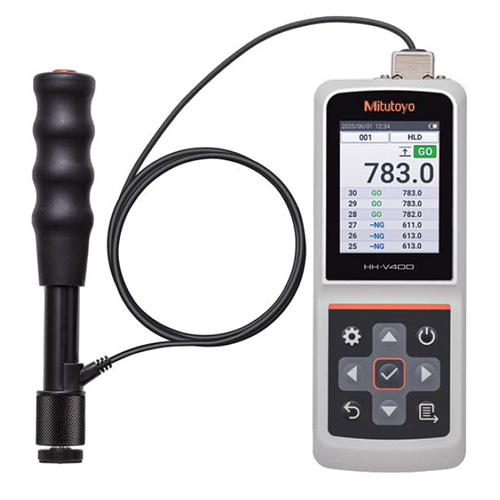

The 810-306 Portable Hardness Tester also known as Pocket Vick is a rebound-type with a compact body and high operability that tests metals. The hardness is determined from the ratio of the impact hammer’s rebound velocity to its impact velocity.

It can instantly test hardness anywhere, anytime; the tester can be used for objects that cannot be placed onto a tabletop testing machine or that are not easily accessible. It features greatly improved functionality and operability, including color LCD display and enhanced statistical calculation functions.

Made in Japan and comes with a one-year manufacturer’s warranty.
Shop for 810-306 Portable Hardness Tester at MRM Metrology, and save.
Buy 810-306 Pocket Vick now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SKU: 810-306 Category:

Product Description

  • Features
  • Specifications

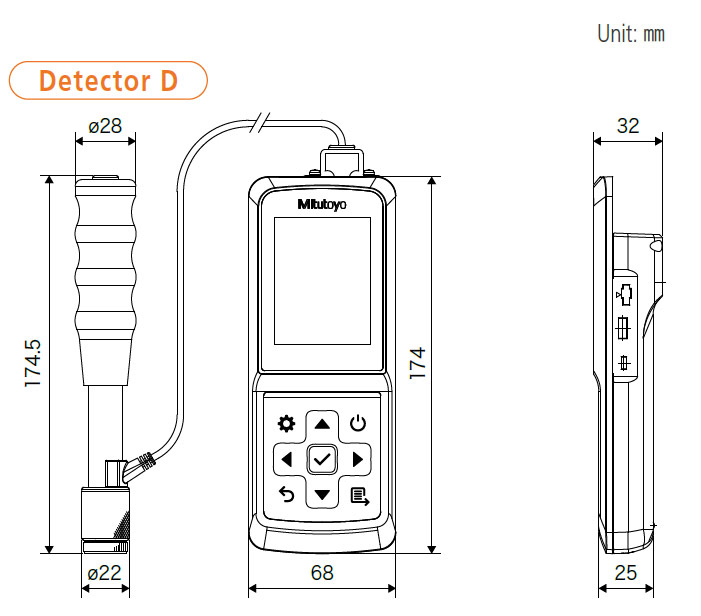

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ LCD Interface
○ Ability to store 1800 measurements
○ Maintain up to 100 control groups
○ Perform statistical analysis on measured data
○ Rechargeable (Continuous operation for 8 hours)

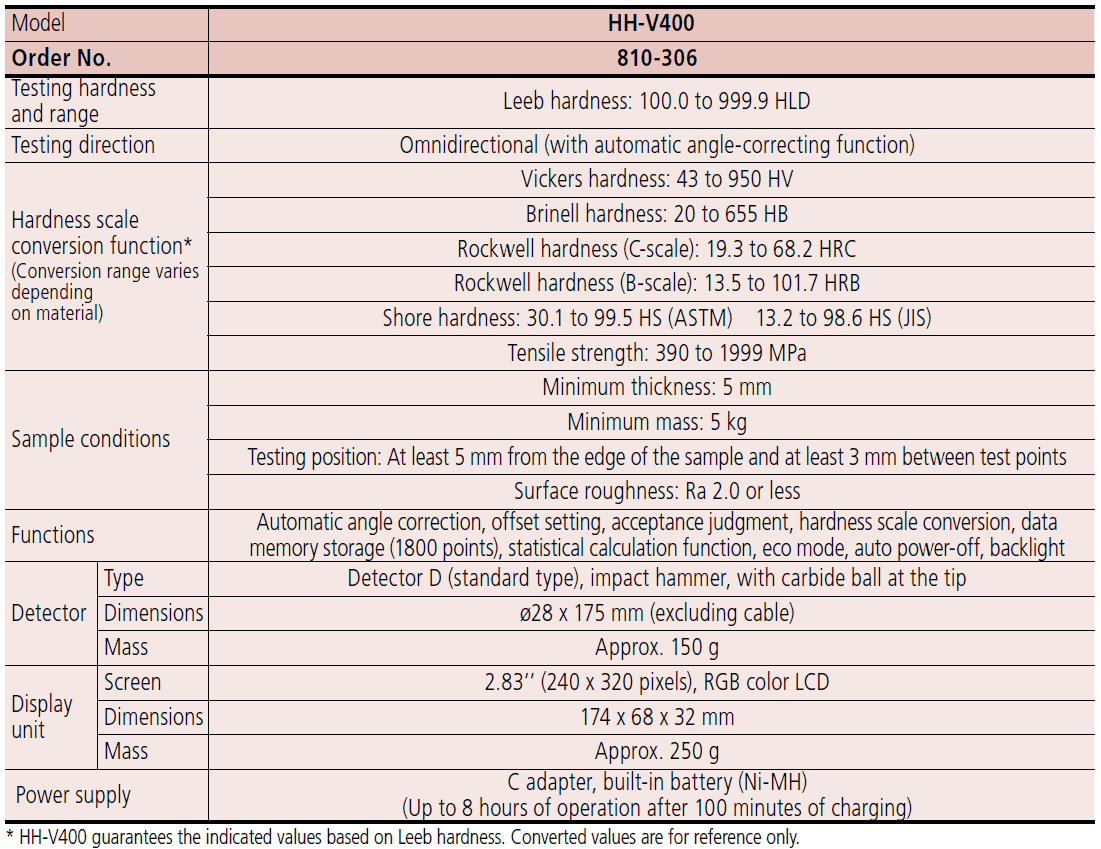

Testing Hardness and Range Leeb Hardness: (100.0 to 999.9) HLD
Testing direction Omnidirectional (with automatic angle-correcting function)
Hardness Scale Conversion Function*
(Conversion range varies depending on material)		 Vickers Hardness: (43 to 950) HV
Brinell Hardness: (20 to 655) HB
Rockwell Hardness (C-scale): (19.3 to 68.2) HRC
Rockwell Hardness (B-scale): (13.5 to 101.7) HRB
Shore Hardness: (30.1 to 99.5) HS (ASTM) , (13.2 to 98.6 HS) (JIS)
Tensile Strength: (390 to 1999) MPa
Sample Conditions Minimum Thickness: 5 mm Minimum Mass: 5 kg Testing Position: At least 5 mm from the edge of the sample and at least 3 mm between test points Surface Roughness: Ra 2.0 or less
Functions Automatic angle correction, offset setting, acceptance judgment, hardness scale conversion, data memory storage (1800 points), statistical calculation function, eco mode, auto power-off, backlight
Warranty One-year limited manufacturer’s warranty


INCLUDED
Product Name Code No. Notes
Display
Detector   Detector D (Standard Type)
Impact hammer   Uses a carbide ball at the tip
AC Adapter 12BAS450 Input voltage: AC100 V to 240 V 10 % (50 Hz/60 Hz) Output rating: DC 5.0 V 2.0 A Number of pins: 6
USB 2.0 cable 12BAS451 Type A-C
Handle 11BAB687 Ball-replacement tool
Small Support Ring 11AAA857 ø14 mm
Phillips Screwdriver 05CAA952 For detector replacement
Storage box 11PAA429

OPTIONAL
Product Name Code No. Notes
Detector D 11AAE902 ø 28 x 174.5 mm (tip diameter ø 22 mm)
Detector DC 11AAE903 ø 18 x 86 mm (tip diameter ø 22 mm)
Detector D + 15 11AAE904 ø 28 x 189.5 mm (tip width 12 mm)
Detector DL 11AAE905 ø 28 x 229 mm (tip diameter ø 4 mm)
Hardness Reference Block 11AAD241 880 HLD
Hardness Reference Block 11AAD242 830 HLD
Hardness Reference Block 11AAD243 730 HLD
Hardness Reference Block 11AAD244 630 HLD
Hardness Reference Block 11AAD245 520 HLD
Hardness Test Block 11AAD240 Approx. 800 HLD
Support ring 19BAA248 For convex cylindrical surfaces (R10 to 20 mm): for Detectors D and DC
Support ring 19BAA249 For concave cylindrical surfaces (R14 to 20 mm):for Detectors D and DC
Support ring 19BAA250 For convex spherical surfaces (R10 to 27.5 mm): for Detectors D and DC
Support ring 19BAA251 For concave spherical surfaces (R13.5 to 20 mm): for Detectors D and DC
Carbide Ball 19BAA457 For Detectors D, DC, and D +15
Replacement Ball Shaft 19BAA458 For Detector DL

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 810-306 when requesting calibration services from MRM Metrology.



Calibration and Repair Services

MRM provides Calibration and Repair Services for the
810-306 Mitutoyo Portable Hardness Tester

For a quote, please email us at  [email protected]
