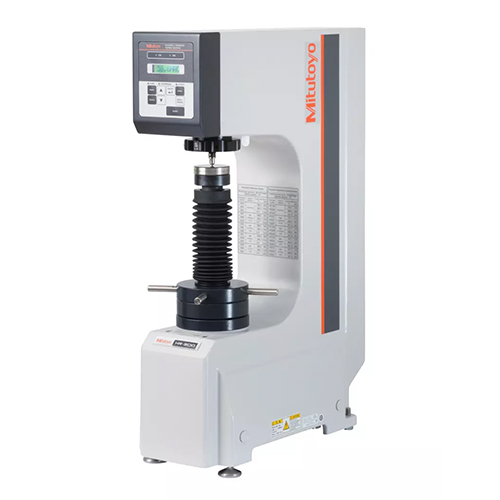

| ○ The frame provides maximum clearance for positioning the workpiece. A flat table is all that is needed for mounting these testing machines |
| ○ The digital type has digimatic output and the Digimatic Mini-Processor (DP-1VA LOGGER) to print and input tools (USB-ITN-E) to connect to a PC and use for data transfer |
| ○ Compliant with ASTM requirements |

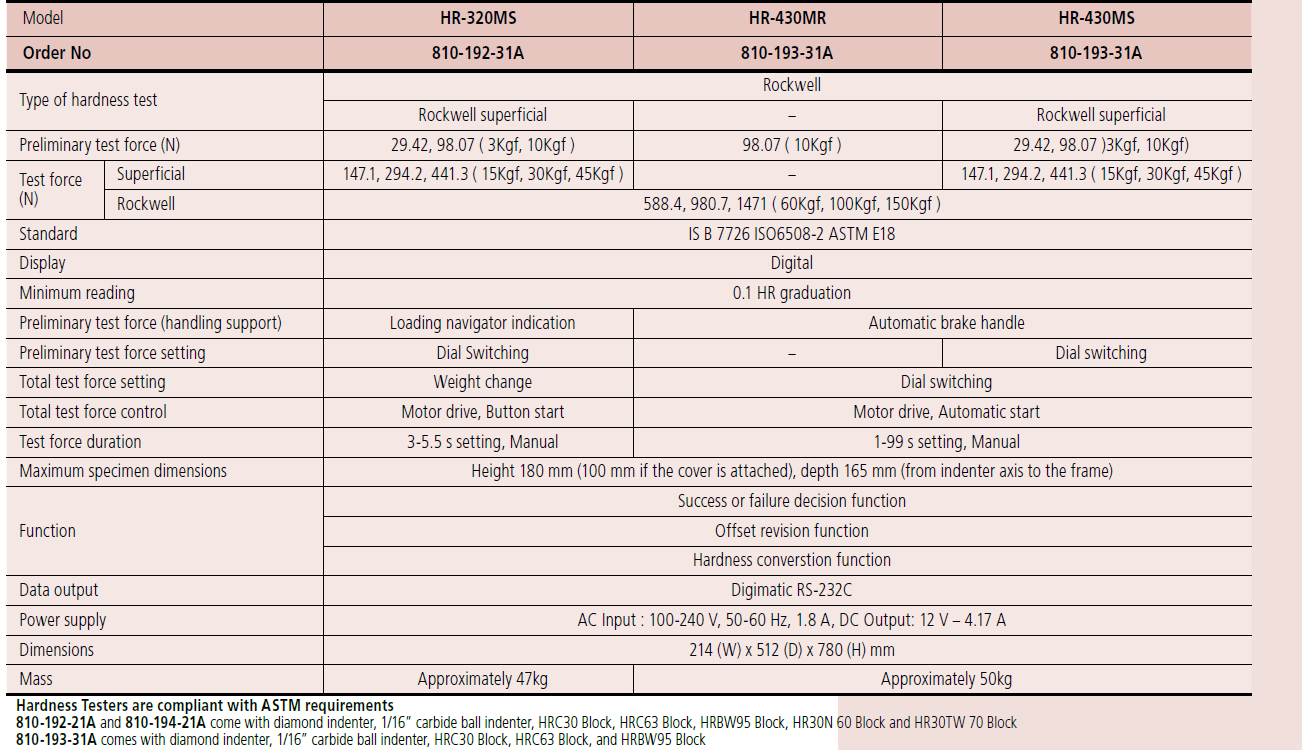

| Test Force | (588.4 , 980.7 , 1471) N , (60 , 100 , 150) kgf |
| Preliminary Test Force | 98.07 N , 10 kgf |
| Minimum Reading | 0.1 HR graduation |
| Type of Hardness Test | Rockwell |
| Standard | IS B 7726 ISO6508-2 ASTM E18 |
| Display | Digital |
| Preliminary Test Force (Handling Support) | Automatic brake handle |
| Total Test Force Setting | Dial switching |
| Total Test Force Control | Motor drive, Automatic start |
| Test Force Duration | (1 to 99) s setting, Manual |
| Maximum Specimen Dimensions | Height 180 mm (100 mm if the cover is attached), depth 165 mm (from indenter axis to the frame) |
| Function | Success or failure decision , Offset revision , Hardness conversion |
| Data Output | Digimatic RS-232C |
| Power Supply | AC Input : 100-240 V, 50-60 Hz, 1.8 A, DC Output: 12 V – 4.17 A |
| Mass | Approximately 50 kg |
| Warranty | One-year limited manufacturer’s warranty |
| Replacement | 810-193-31A replaces 810-193-21A |
| Dimensions (W x D x H) | (214 x 512 x 780) mm |
| Unit of Measurement | mm |
| INCLUDED | ||
| Diamond Indenter | ||
| 1/16” Carbide Ball Indenter | ||
| HRC30 Block | ||
| HRC63 Block | ||
| HRBW95 Block | ||
| OPTIONAL | ||
| Product Name | Code No. | Notes |
| Round Table | 810-038 | For large specimens such as molded items (Outside ø 250 mm) |
| Round Table | 810-037 | For large specimens such as molded items (Outside ø 180 mm) |
| V-Anvil (large) | 810-040 | For shaft materials (max. ø 8.4 mm) (Outside ø 40 mm, Groove width 6 mm) |
| V-Anvil (small) | 810-041 | For round specimens (max. ø 60 mm) (Outside ø 40 mm, Groove width 30 mm) |
| Spot Anvil | 810-043 | (Outside ø 12 mm) |
| Spot Anvil | 810-044 | For sheet specimens (Outside ø 5.5 mm) |
| Jack Rest | 810-028 | For supporting long specimens (Used with anvil or round table) |
| Vari-Rest | 810-027 | For testing long specimens (commonly used for the anvil) |
| Special V-Anvil | 810-029 | For round specimens ø 14 to 98 mm (Length 400 mm, Groove width 50 mm) |
| Small V-Anvil | 810-042 | For round specimens (max. ø 16 mm) (Outside ø10 mm) |
| Testing Machine Table | 11AAD186 | Supplied with stability bracket |
| Vibration Isolator | 810-643 | Only for mounting hardness testing machines |
| Foot switch | 11AAD537 | |
| Test Blocks | ||
| Diamond Indenters |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 810-193-31A when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
810-193-31A Mitutoyo Rockwell Hardness Testing Machine
For a quote, please email us at [email protected]
