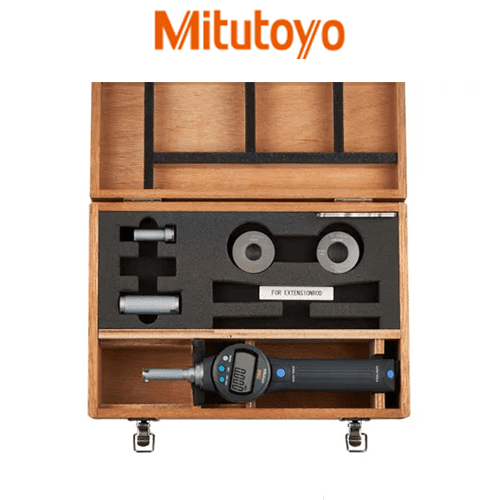

568-929 Mitutoyo Digimatic Borematic Head Set

The Borematic ABSOLUTE Digimatic Set Snap-Open Bore Gauge enables the operator to take measurements more accurately and more quickly than ever before. Once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Therefore no longer repeated origin setting (presetting) is necessary. The ABSOLUTE linear encoder eliminates the fear of over-speed errors.
Shop for MRM 568-929 at MRM Metrology and CAL 568-929 for ordering calibration services.

Other Models

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ TiN-coated measuring contact points provide excellent durability
○ Large LCD digits of 8.5 mm height for error-free reading
○ 330-degree rotatable display unit for easy reading at any angle
○ GO/NO-GO judgment function
○ The ABSOLUTE linear encoder eliminates the fear of over-speed errors
○ With SPC data output
○ Setting rings for origin point setting are optional
○ Can measure deep holes by attaching an optional extension rod
○ Measurement can be taken closer to the bottom of a blind bore
○ Data hold
○ Zero-Set
○ Carbide or titanium coating
○ Each set includes one display unit with interchangeable measuring heads units of the sizes specified and extension rod
○ Supplied in fitted wooden case

Range (12.7 to 25.4) mm / (0.5 to 1)”
Resolution 0.001 mm / 0.00005″
Accuracy ± 0.00025″ / ± 0.0003″
Measuring Method Three-point method
Individual Head No. 04AZA721, 04AZA722, 04AZA730
Setting Rings Included 177-182 (0.65″ Dia.), 177-287 (0.8″ Dia.)
Display Unit 568-015
Adaptor Supplied 216556, 216557
Display LCD
Warranty One (1) year limited manufacturer’s warranty

Individual Metric Range Accuracy Mass (g)
568-361 (6 to 8) mm ± 0.005 mm 480
568-362 (8 to 10) mm ± 0.005 mm 485
568-363 (10 to 12) mm ± 0.005 mm 485
568-364 (12 to 16) mm ± 0.005 mm 475
568-365 (16 to 20) mm ± 0.005 mm 480
568-366 (20 to 25) mm ± 0.006 mm 540
568-367 (25 to 30) mm ± 0.006 mm 555
568-368 (30 to 40) mm ± 0.006 mm 565
568-369 (40 to 50) mm ± 0.006 mm 610
568-370 (50 to 63) mm ± 0.006 mm 730
568-371 (63 to 75) mm ± 0.006 mm 740
568-372 (75 to 88) mm ± 0.006 mm 790
568-373 (87 to 100) mm ± 0.006 mm 800
568-374 (100 to 113) mm ± 0.006 mm 900
568-375 (112 to 125) mm ± 0.006 mm 910
Individual Metric/Inch
568-461 (6 to 8) mm / (0.27 to 0.35)” ± 0.00025″ 480
568-462 (8 to 10) mm / (0.35 to 0.42)” ± 0.00025″ 485
568-463 (10 to 12) mm / (0.42 to 0.5)” ± 0.00025″ 485
568-464 (12 to 16) mm / (0.5 to 0.65)” ± 0.00025″ 475
568-465 (16 to 20) mm / (0.65 to 0.8)” ± 0.00025″ 480
568-466 (20 to 25) mm / (0.8 to 1.0)” ± 0.0003″ 540
568-467 (25 to 30) mm / (1.0 to 1.2)” ± 0.0003″ 555
568-468 (30 to 40) mm / (1.2 to 1.6)” ± 0.0003″ 565
568-469 (40 to 50) mm / (1.6 to 2.0)” ± 0.0003″ 610
568-470 (50 to 63) mm / (2.0 to 2.5)” ± 0.0003″ 730
568-471 (63 to 75) mm / (2.5 to 3.0)” ± 0.0003″ 740
568-472 (75 to 88) mm / (3.0 to 3.5)” ± 0.0003″ 790
568-473 (87 to 100) mm / (3.5 to 4.0)” ± 0.0003″ 800
568-474 (100 to 113) mm / (4.0 to 4.5)” ± 0.0003″ 900
568-475 (112 to 125) mm / (4.5 to 5.0)” ± 0.0003″ 910

Complete Unit Set, Metric Range Individual Order No. Setting Rings Included
568-955 (6 to 12) mm 568-361, 568-362, 568-363 177-125 (Ø8 mm) / 177-126 (Ø10 mm)
568-956 (12 to 25) mm 568-364, 568-365, 568-366 177-177 (Ø16 mm) / 177-286 (Ø20 mm)
568-957 (25 to 50) mm 568-367, 568-368, 568-369 177-139 (Ø25 mm) / 177-290 (Ø40 mm)
568-958 (50 to 75) mm 568-370, 568-371 177-139 (Ø62 mm)
568-959 (75 to 100) mm 568-372, 568-373 177-318 (Ø87 mm)
Complete Unit Set, Metric/Inch
568-965 (6 to 12) mm / (0.27 to 0.5)” 568-461, 568-462, 568-463 177-179 (0.35″ DIA.) / 177-283 (0.42″ DIA.)
568-966 (12 to 25) mm / (0.5 to 1.0)” 568-464, 568-465, 568-466 177-182 (0.65″ DIA.) / 177-287 (0.8″ DIA.)
568-967 (25 to 50) mm / (1 to 2)” 568-467, 568-468, 568-469 177-289 (1.2″ DIA.) / 177-291 (1.6″ DIA.)
568-968 (50 to 75) mm / (2 to 3)” 568-470, 568-471 177-315 (2.5″ DIA.)
568-969 (75 to 100) mm /(3 to 4)” 568-472, 568-473 177-319 (3.5″ DIA.)

Interchangeable Head Set, Metric Range Individual Head No. Setting Rings Included Display Unit Adaptor Supplied
568-924 (6 to 12) mm 04AZB136, 04AZB137, 04AZB138 177-125 (Ø8 mm) / 177-126 (Ø10 mm) 568-014 954595
568-925 (12 to 25) mm 04AZA719, 04AZA720, 04AZA728 177-177 (Ø16 mm) / 177-286 (Ø20 mm) 568-014 216556, 216557
568-926 (25 to 50) mm 04AZA729, 04AZA737, 04AZA738 177-288 (Ø30 mm) / 177-290 (Ø40 mm) 568-014 216557
568-927 (50 to 100) mm 04AZA750, 04AZA751, 04AZA752, 04AZA753 177-139 (Ø62 mm) / 177-318 (Ø87 mm) 568-014 216558
Interchangeable Head Set, Metric/Inch
568-928 (6 to 12) mm / (0.27 to 0.5)” 04AZB139, 04AZB140, 04AZB141 177-179 (0.35″ DIA.) / 177-283 (0.42″ DIA.) 568-015 954595
568-929 (12 to 25) mm / (0.5 to 1.0)” 04AZB721, 04AZB722, 04AZB730 177-182 (0.65″ DIA.) / 177-287 (0.8″ DIA.) 568-015 216556, 216557
568-930 (25 to 50) mm / (1 to 2)” 04AZB731, 04AZB739, 04AZB740 177-289 (1.2″ DIA.) / 177-291 (1.6″ DIA.) 568-015 216557
568-936 (50 to 100) mm / (2 to 4)” 04AZB754, 04AZB755, 04AZB756, 04AZB757 177-315 (2.5″ DIA.) / 177-319 (3.5″ DIA.) 568-015 216558

Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 7,000 hours
Optional Items
905338 SPC cable (1m / 40”)
905409 SPC cable (2m / 80”)
952322 Extension Rod 100 mm / 3.94”. For range (6 to 12) mm / (0.275 to 0.5)” models
95621 Extension Rod 150 mm / 5.9”. For range (12 to 20) mm / (0.5 to 0.8)” models
952622 Extension Rod 150 mm / 5.9”. For range (20 to 50) mm / (0.8 to 2)” models
952623 Extension Rod 150 mm / 5.9”. For range (50 to 300) mm / (2 to 12)” models
