Mitutoyo Tube Thickness Caliper

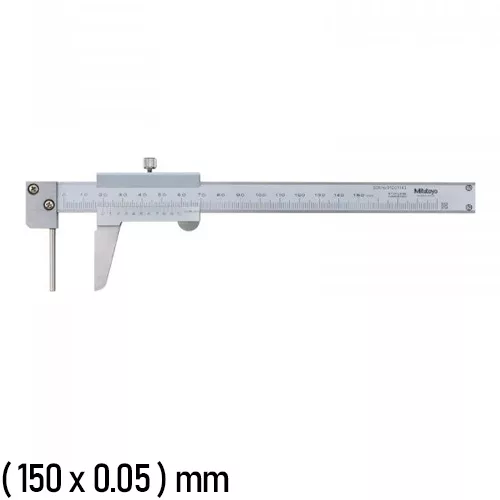

536-161 Mitutoyo Vernier Caliper, Tube Thickness

The 536-161 Vernier Tube Thickness caliper includes a main scale which consists of a round bar and blade-type jaw constructed of hardened steel to take highly accurate wall thickness measurements of round pieces. The round bar allows the jaw to match the rounded contour of tubes and pipes for precise measurements.

It comes with one year limited manufacturer’s warranty.
Shop for 536-161 at MRM Metrology and use CAL 536-161 when ordering calibration services.

Other Models

SKU: 536-161 Categories: ,

Product Description

  • Features
  • Specifications

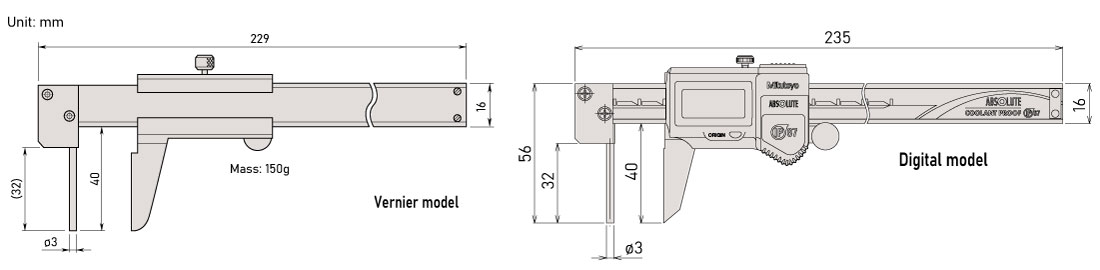

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Raised sliding surfaces prevent defacement and wear of scale graduations
○ Jaws are tipped with carbide for better accuracy and durability
○ Constructed of corrosion-resistant, hardened stainless steel
○ Lock screw holds the sliding jaw position for accurate measurement
○ Supplied in fitted plastic case

Range (0 to 150) mm
Graduation 0.05 mm
Accuracy ± 0.05 mm
Mass 150 g
Manufacturer’s Warranty 1 year limited manufacturer’s warranty

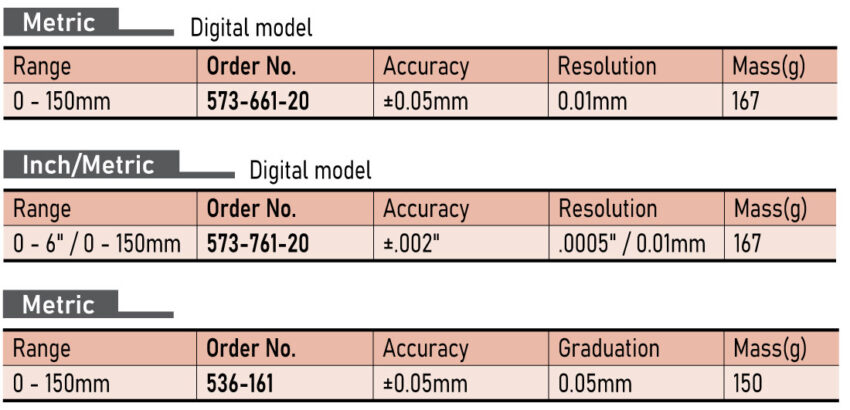

573-661-sheet

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
536-161 Mitutoyo Digimatic Caliper, Tube Thickness

For a quote, please email us at  [email protected]
