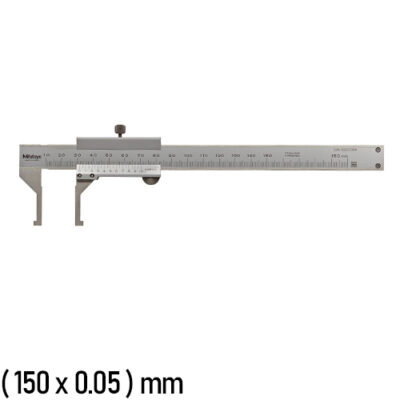

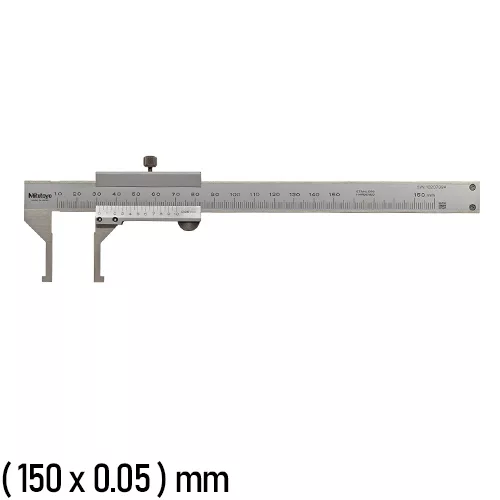

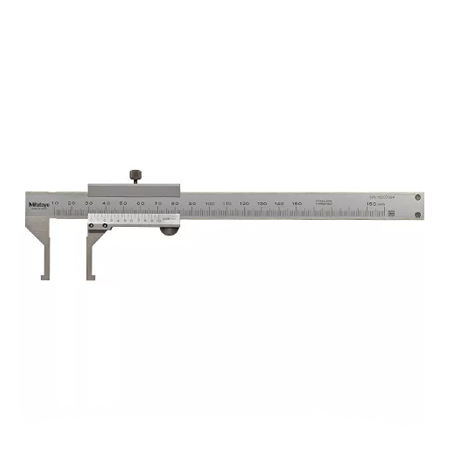

536-145 Mitutoyo Vernier Inside Caliper (10 to 150) mm

The 536-145 Vernier Specialized Inside Caliper is specially designed to measure inside dimensions that are otherwise hard to obtain with standard calipers. Available with inside groove jaws, this specialized caliper is capable of reaching into recesses, bore holes and grooves and provides precise, repeatable measurements. The caliper is constructed of hardened stainless steel with a satin chrome finish for protection and easy reading.

It comes with a one-year manufacturer’s warranty.
Shop for 536-145 Vernier Inside Caliper at MRM Metrology, and save.
Buy 536-145 Inside Caliper now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models

SKU: 536-145 Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Raised sliding surfaces prevent defacement and wear of scale graduations
○ Jaws are tipped with carbide for better accuracy and longer performance
○ Constructed of corrosion-resistant, hardened stainless steel
○ Lock screw holds the sliding jaw position for accurate measurement
○ Supplied in fitted plastic case

Range (10 to 150) mm
Graduation 0.05 mm
Accuracy ± 0.05 mm
Mass 130 g
Remarks Inside groove type
Measurable min. Hole Diameter ø 10 mm
Warranty One-year limited manufacturer’s warranty

Mitutoyo Caliper Inside

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 536-145 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
536-145 Mitutoyo Vernier Inside Caliper

For a quote, please email us at  [email protected]
