| ○ Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force |
| ○ Measurement results are displayed in inches and metric on an LCD readout |
| ○ Carbide-tipped measuring tips resist wear for better accuracy over time |
| ○ Twice as long battery life than previous models improves throughput and efficiency |
| ○ Auto power ON/OFF function saves battery life makes for easier use |
| ○ Functions include preset, zero-setting, power ON/OFF, data hold, data output and inch/mm conversions |
| Range | (457.2 to 482.6) mm ; (18 to 19)” |
| Resolution | 0.001 mm ; 0.0001″ |
| Accuracy | ± 0.0004″ |
| Flatness | 0.6 µm ; 0.000024″ |
| Parallelism | 6 µm or less ; 0.00024″ or less |
| Mass | 2,900 gr |
| Measuring Force | (10 to 14) N |
| Measuring Faces | Carbide tip |
| Display | LCD |
| SPC Output | Yes |
| Ratchet/Thimble | Ratchet Stop |
| Manufacturer’s Warranty | 1 year limited manufacturer’s warranty |
| INCLUDED ITEMS | |
| Battery (938882) | SR44 (2 pcs) |
| Battery Life | Approx. 1.8 years under normal use |
| OPTIONAL ITEMS | |
| 959149 | SPC cable (40″/1m) |
| 959150 | SPC cable (80″/2m) |
| 04AZB512 | SPC cable (L-type(40’/2m) |
| 04AZB513 | SPC cable L-type(80″/2m) |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

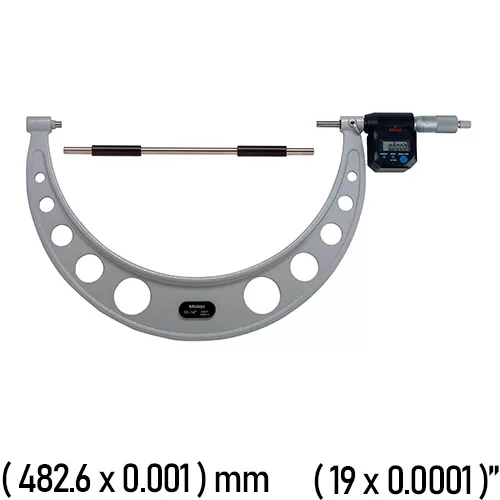

293-788 Mitutoyo Micrometer, Digimatic
For a quote, please email us at [email protected]
