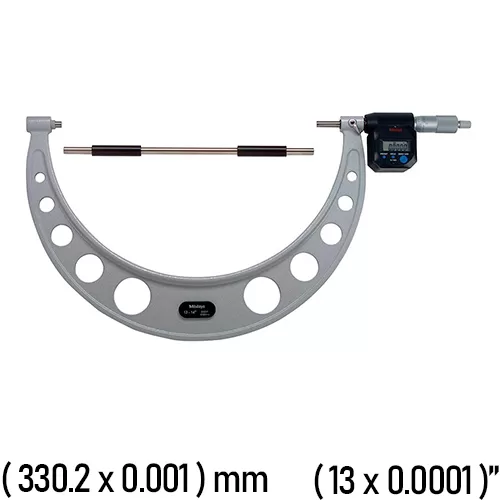

293-782 Mitutoyo Digimatic Micrometer

The 293-782 Digimatic digital micrometer’s ratchet thimble mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring a wide range of different dimensions, or easier one-handed measurements.

It comes with one year limited manufacturer’s warranty.
Shop for 293-782 at MRM Metrology and use CAL 293-782 when ordering calibration services.

Other Models

SKU: 293-782 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
○ Measurement results are displayed in inches and metric on an LCD readout
○ Carbide-tipped measuring tips resist wear for better accuracy over time
○ Twice as long battery life than previous models improves throughput and efficiency
○ Auto power ON/OFF function saves battery life makes for easier use
○ Functions include preset, zero-setting, power ON/OFF, data hold, data output and inch/mm conversions
Range (304 to 330.2) mm ; (12 to 13)”
Resolution 0.001 mm ; 0.0001″
Accuracy ± 0.0003″
Flatness 0.6 µm ; 0.000024″
Parallelism 5 µm or less ; 0.00020″ or less
Mass 2,000 gr
Measuring Force (10 to 14) N
Measuring Faces Carbide tip
Display LCD
SPC Output Yes
Ratchet/Thimble Ratchet Stop
Manufacturer’s Warranty 1 year limited manufacturer’s warranty

Micrometer Digimatic Series 293

Battery (938882) SR44 (2 pcs)
Battery Life Approx. 1.8 years under normal use
959149 SPC cable (40″/1m)
959150 SPC cable (80″/2m)
04AZB512 SPC cable (L-type(40’/2m)
04AZB513 SPC cable L-type(80″/2m)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
293-782 Mitutoyo Micrometer, Digimatic

For a quote, please email us at  Service@MRMmetrology.com
