293-100-10 Mitutoyo Micrometer

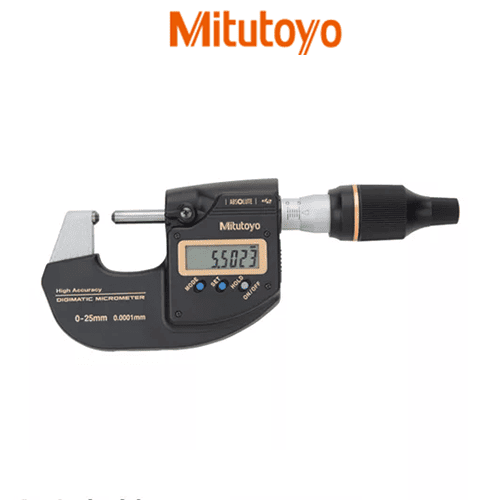

293-100-10 Mitutoyo MDH Digimatic Micrometer, 25 mm

DISCONTINUED   ** Replaced with 293-100-20 **

The 293-100-10 MDH Digimatic ABSOLUTE micrometer provides fast and easy high-accuracy measurements on workpieces that require absolute precision. Exceptional performance is achieved due to the MDH’s highly rigid frame, high performing constant-force ratchet mechanism and innovative thread cutting technology in the spindle.

It comes with a one-year manufacturer’s warranty.
Shop for 293-100-10 Digital micrometer at MRM Metrology, and save.
Buy 293-100-10 micrometer now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC


Other Models

SKU: 293-100-10 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Enabling .000005” / 0.1μm resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a hand-held tool
○ A highly rigid frame and high-performance constant-force mechanism* enable more stable measurements , while the clicks emitted when the work piece is being measured assure the operator that measurement is proceeding normally
○ Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements
○ The ABS (absolute) rotary sensor also eliminates the need to perform origin setting every time the power is turned on, offering immediate measurement
○ With no possibility of over speed errors, the High-Accuracy Digimatic Micrometer also delivers a high level of reliability
○ Carbide tips help resist wear on the measuring faces for accurate measurements over an extended period of time
○ Built-in “Hold” function freezes the displayed value, enabling the micrometer to be removed from a workpiece for better viewing when the readout is not easily visible
○ Functions include Preset, Zero-Setting (INC measurement system), Hold, Resolution Switching, Function Lock, ON/OFF, Auto Power Off, Measurement Data Output, Error Alarm

Range (0 to 25) mm
Resolution 0.0001 mm , 0.0005 mm (switchable)
Accuracy ± 0.5 µm
Flatness 0.3 µm
Parallelism 0.6 µm or less
Measuring force (7 to 9) N
Display LCD
Ratchet/Thimble Ratchet Thimble
Mass 270 gr
SPC Output Yes
Warranty One year limited manufacturer’s warranty

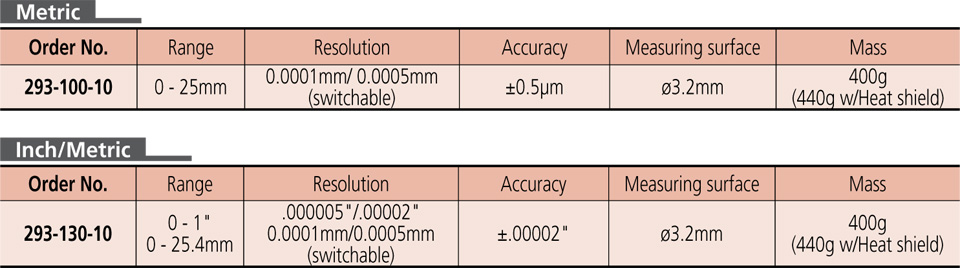

Models and Specifications

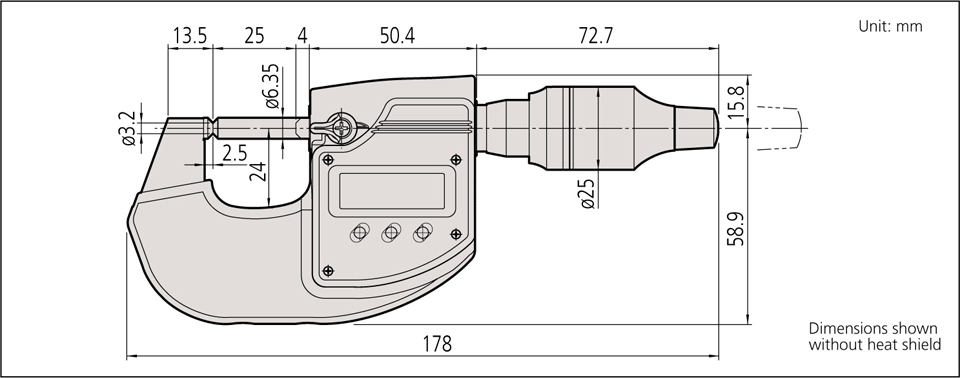

Dimensions

INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
Battery Life Approx. 7,000 hours
OPTIONAL ITEMS
05CZA662 SPC cable with data switch (1m/40”)
05CZA663 SPC cable with data switch (2m/80”)

Brochure

VIDEOS

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 293-100-10 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
293-100-10 Mitutoyo Digimatic Micrometer

For a quote, please email us at  [email protected]
