| ○ The accuracy of ± 0.5 μm is achieved with our innovative 5 µinch ; 0.1 μm resolution ABS (ABSOLUTE) rotary sensor and screw machining technology |
| ○ A highly rigid frame and high-performance constant-force mechanism allow stable measurements. |
| ○ Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements. |
| ○ Carbide tips help resist wear on the measuring faces for accurate measurements over an extended period of time |
| ○ Built-in “Hold” function freezes the displayed value, enabling the micrometer to be removed from a workpiece for better viewing when the readout is not easily visible |
| ○ Functions include Preset, Zero-Setting (INC measurement system), Hold, Resolution Switching, Function Lock, ON/OFF, Auto Power Off, Measurement Data Output, Error Alarm |
| Range | (0 to 25) mm |
| Resolution | (0.0001 , 0.0005) mm (switchable) |
| Accuracy | ± 0.5 µm |
| Flatness | 0.3µm |
| Parallelism | 0.6 µm |
| Measuring Surface | ø 3.2 mm |
| Measuring Force | (7 to 9) N |
| Measuring Faces | Carbide tipped |
| Position Detection Method | Electromagnetic induction type ABS rotary sensor |
| Mass | 405 g (445 g with heat shield attached) |
| Unit of Measurement | Metric |
| Warranty | One year limited manufacturer’s warranty |
| Replacement | 293-100-20 replaces 293-100-10 |
| INCLUDED | |
| Battery | CR2032 (1 pc.) |
| Battery Life | Approx. two years when used under normal conditions |
| 04AAB969A | Heat shield |
| 200877 | Spanner |
| 04AAB985 | Screwdriver |
| Cleaning Paper | For measuring faces (20 sheets) |
| Inspection Certificate | |
| OPTIONAL | |
| 156-101-10 | Micrometer Stand |
| 264-020 | USB Input Tool Series USB Keyboard Signal Conversion Type IT-020U |
| 05CZA662 | Connection cable (1 m) – Type B |
| 05CZA663 | Connection cable (2 m) – Type B |
| 06AFM380B | USB Input Tool Direct (2 m) – Type B |
| 02AZD730G | U-WAVE-T – Type IP67 |
| 02AZD880G | U-WAVE-T – Type Buzzer |
| 02AZE200 | U-WAVE-T mounting bracket |
| 02AZD790B | Connection cable for U-WAVE-T (160 mm) – Type B |
| 02AZE140B | Connection cable for U-WAVE-T for Foot Switch – Type B |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 293-100-20 when requesting calibration services from MRM Metrology.
Calibration and Repair Services

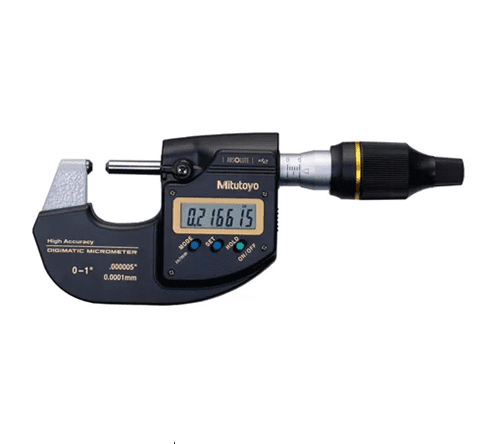

MRM provides Calibration and Repair Services for the 293-100-20 Mitutoyo Digimatic Micrometer
For a quote, please email us at [email protected]
