WT-205M Mark-10 Wire Crimp Pull Tester 1000 N , 200 lbf

FREE Calibration Certificate
FREE Shipping in Ontario.

The WT-205M Wire Crimp Motorized Pull Tester measures wire crimp pull forces up to 200 lbF [1 kN] accurately and efficiently. Portable and customizable, the tester conforms to numerous UL, ISO, ASTM, SAE, MIL, and other requirements for destructive and non-destructive testing.

Pull to break, pull to load, or maintain a load for a specified period of time (optional functions), as per the requirements of UL 486A/B. Programmable pass/fail limits with red and green indicators and audio alerts help identify non-conforming samples.

The tester’s standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable. To accommodate a wide range of materials, optional and interchangeable alternative grips are available. Samples can be sent for evaluation and recommendation prior to purchase. It stores and calculates statistics for up to 2,000 readings, with available date and time stamps for each saved data point. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

Upon sample break, the tester can auto-reverse, save and output the peak force, and auto-zero in preparation for the next test, increasing testing efficiency. The available Profiles function allows the user to create and save test setups for quick recall.

The WT-205M includes MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for WT-205M Wire Crimp Pull Tester at MRM Metrology, and save.
Buy WT-205M Pull Tester now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
Free Calibration Certificate

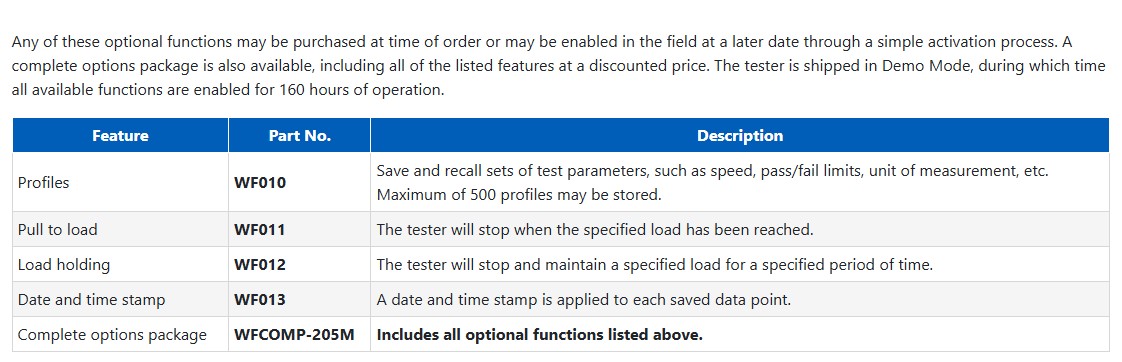

Optional Functions

SKU: WT-205M Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Measures real-time and peak force values
○ Selectable test speed, w/high speed approach and reverse
○ Auto-start upon sample insertion
○ Auto-reverse at sample break or load
○ USB, RS-232, Mitutoyo (Digimatic), and analog outputs
○ Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
○ 2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
○ Password protection prevents unauthorized changes
○ Pass / fail indicators, audio alerts, and outputs
○ Save and recall up to 500 profiles for various test requirements (optional function)
○ Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
○ Date / time stamp for all saved data (optional function)
Capacity 200 lbf , 3200 ozf , 100 kgf , 1,000 N , 1 kN
Resolution 0.1 lbf , 2 ozf , 0.05 kgf , 0.5 N , 0.0005 kN
Accuracy ± 0.2% of Full Scale
Wire Gauge Range* AWG30 – AWG 3: (0.3 to 6.3) mm , (0.01 to 0.25)” dia.
Sample length range: 53.3 mm , 2.1″, excluding termination
Maximum Elongation 58.4 mm , 2.3″
Test Speed (10 to 300) mm/min , (0.4 to 12.0) in/min
Approach/Reverse Speed (300 to 625) mm/min , (12.0 to 25.0) in/min
Return Speed (300 to 1125) mm/min , (12.0 to 45.0) in/min
Speed Setting Accuracy ± 0.2%
Speed Variation with Load ± 0% (Stepper motor driven)
Power Universal input 80-240 VAC, 50/60 Hz
Sampling Rate 7000 Hz
USB / RS-232 Configurable up to 115,200 baud
Mitutoyo (Digimatic) Serial BCD suitable for all Mitutoyo SPC-compatible Devices
Analog ± 1 VDC, ± 0.25% of full scale
Set Points Three open drain lines, 40 VDC max., 100 mA DC max
Overload Protection Motor stops at 120% of full scale of the force sensor (display shows “OVER” at 110% and above)
Weight 12 kg , 26.5 lb
Environmental Requirements (40 to 100)°F, max. 96% humidity, Non-condensing
Manufacturer’s Warranty Three years (See individual statement for further details)
Replacement WT-205M replaces WT3-201M

INCLUDED
1 Unit USB cable
1 Unit Power cord
OPTIONAL
AC1135 Ring terminal fixture
AC1136 Machinable blank terminal fixture
AC1134 Bollard grip assembly
AC1133 Dual roller grip assembly
AC1132 Wedge grip assembly
AC1137-2 Carrying case
15-1005 MESUR®gauge Plus software
AC1049 Calibration kit

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL WT-205M when requesting calibration services from MRM Metrology.



Calibration and Repair Services

MRM provides Calibration and Repair Services for the
WT-205M Mark-10 Wire Crimp Pull Tester

For a quote, please email us at  [email protected]
