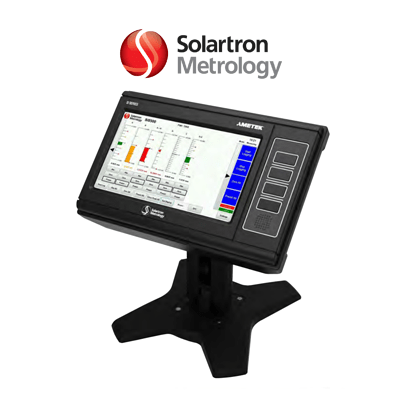

SI 8500 Solartron Digital Readout

The SI 8500 Digital Readout collects measurement data with the purpose of optimizing manufacturing production analysis and control. User interface has been designed to ensure all users the maximum accessible data for industrial measurement applications.

The readout work with all of Solartron Digital Transducers and Non-Contact Sensors, the performance of these sensors is not degraded in any way when used with the readouts.

Made in United Kingdom and it comes with a 1-year manufacturer’s warranty.
Shop for SI 8500 Digital Readout at MRM Metrology, and save.
Buy SI 8500 Readout now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SKU: SI 8500 Category:

Product Description

  • Features
  • Specifications

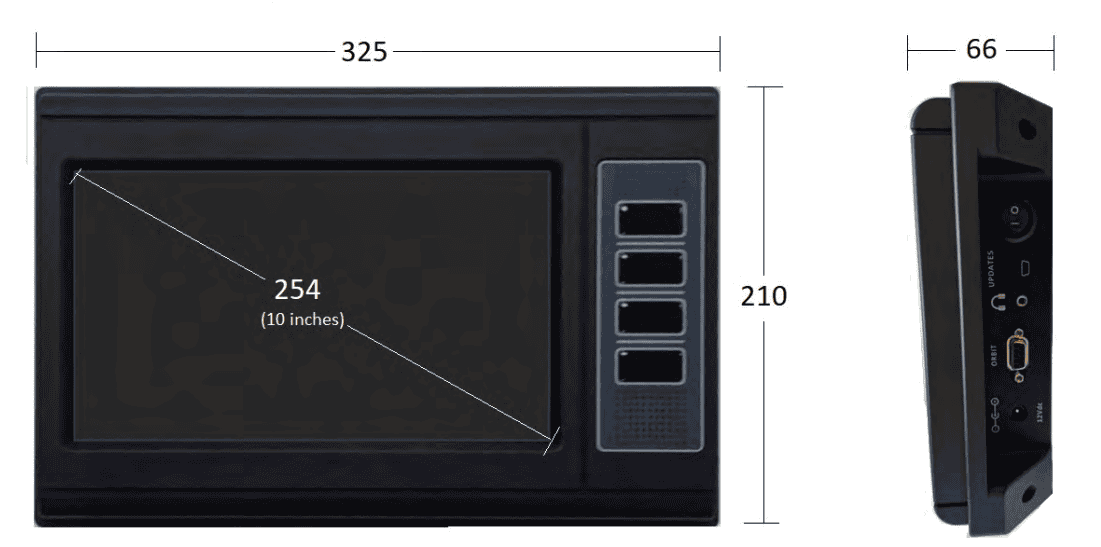

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Heavy duty aluminum casing with 10″ Touch Screen. Built for an industrial environment.
○ IP64 for front panel with four programmable keys.
○ Connect with up to 64 Orbit Sensors
○ Power up to 10 modules, including contact and non-contact sensors
○ Easy & intuitive setup with touch screen
○ Build your own custom formulas
○ SPC and Mastering function included
○ I/O Connections for automation
○ USB port for easy data output
○ Footswitch plug
○ Link to third party sensors via Orbit connection modules, including air gauging
○ Benchtop (with stand) or Panel Mount options (VESA Mounting Standard)

Performance
Maximum Number of Orbit Modules 64
Maximum Number of Orbit Modules powered 10
Network Speed Up to 1000 readings, per module, per second
Math Equations Standard formulas pre-loaded. Customized formulas available.
Math Equations .csv
Hardware
Casing Aluminum
Touch Screen 254 mm / 10″ touchscreen, glass
Maximum Readings on Screen 4,8 or 16 vertical, horizontal bars
External Connections I/O (NPN, PNP, TTL), Footswitch
Power 100 to 240 VAC
Storage Temperature -20 to 80 °C
Operating Temperature 5 to 60 °C
Sealing IP64 (front panel), IP50 (rear)
Mounting VESA 75 x 75 or 100 x100 mm
Mounting Hole Threads M4 x 12


○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL SI 8500 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the SI 8500 Solartron Metrology Digital Readout

For a quote, please email us at  [email protected]
