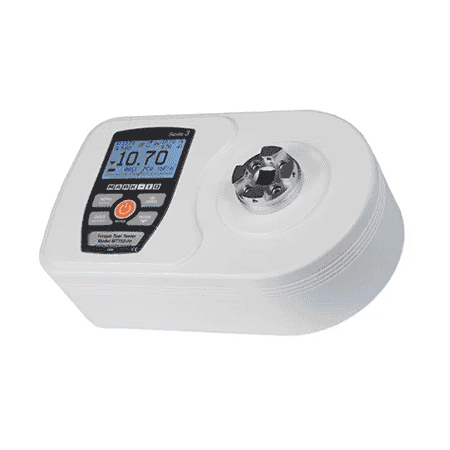

MTT02-12 Mark-10 Digital Torque Tester 1.35 N.m , 12 in.lbf

FREE ISO 17025 Calibration Certificate
FREE shipping in Ontario.

The MTT02-12 Digital Torque Tester offers a simple and accurate solution for testing manual, electric and pneumatic torque screwdrivers, torque wrenches and other torque tools. It’s compact, rugged and suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The MTT02-12 captures peak torque in clockwise and counter-clockwise directions and also calculates 1st and 2nd peaks that are useful for click-type tools.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for MTT02-12 Digital Torque Tester at MRM Metrology, and save.
Buy MTT02-12 Torque Tester now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
ISO17025 Free Calibration

Other Models

SKU: MTT02-12 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ First / second peak capture for CW and CCW directions
○ 3/8” square receptacle accommodates common bits and attachments
○ High-speed 7,000 Hz sampling rate accurately captures peak torque values
○ 1,000-point data memory with statistics and outputs
○ USB, RS-232, Mitutoyo, and analog outputs
○ Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
○ Programmable set point indicators and outputs for pass/ fail determination
○ Password protection prevents unauthorized changes
○ 5 selectable units of measurement
○ Battery or AC operation

Capacity x Resolution 1.35 x 0.001 N.m ; 12 x 0.005 in.lbf ; 192 x 0.1 in.ozf ; 14 x 0.01 cm.kgf ; 135 x 0.1 cNm
Accuracy ± 0.3% of full scale
Sampling Rate 7,000 Hz
Power AC or rechargeable battery
Backlight On Battery life up to 7 hours of continuous use
Backlight Off Battery life up to 24 hours of continuous use
Units of Measurement N.m, in.lbf, in.ozf, cm.kgf, cNm
Output USB / RS-232. Configurable up to 115,200 baud
Mitutoyo (Digimatic) Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog ± 1 VDC, ± 0.25% of full scale at capacity
General Purpose Three open drain outputs, one input
Set Points Three open drain lines
Configurable Setting 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe Overload 150% of full scale (display shows “OVER” at 110% and above)
Environmental Requirements (5 to 45)°C / (40°F to 100)°F, < 96% humidity (non-condensating)
Manufacturer’s Warranty 3 years (See individual statement for further details)

Model in.ozf in.lbf cm.kgf cNm N.m
MTT02-12 192 x 0.1 12 x 0.005 14 x 0.01 135 x 0.1 1.35 x 0.001
MTT02-25 400 x 0.2 25 x 0.01 28 x 0.02 290 x 0.2 2.9 x 0.002
MTT02-50 800 x 0.5 50 x 0.02 58 x 0.05 570 x 0.5 5.7 x 0.005
MTT02-100 1600 x 1 100 x 0.05 116 x 0.1 1150 x 0.5 11.5 x 0.005

Weight 5.8 lb / 2.6 kg
Dimensions IN [MM]


Included Items
1 Unit 1/4” hex to 3/8” square adapter
09-1165 USB cable
AC1030 AC Power Adapter
08-1026 Battery
1 Unit Resource CD
Optional Items
15-1004 MESUR™gauge software
ST002 Carrying case for TT02
AC1066-1, AC1066-2 Rundown fixture, soft joint simulation
ST001 Bench mounting bracket

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MTT02-12 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MTT02-12 Mark-10 Torque Tester

For a quote, please email us at  [email protected]
