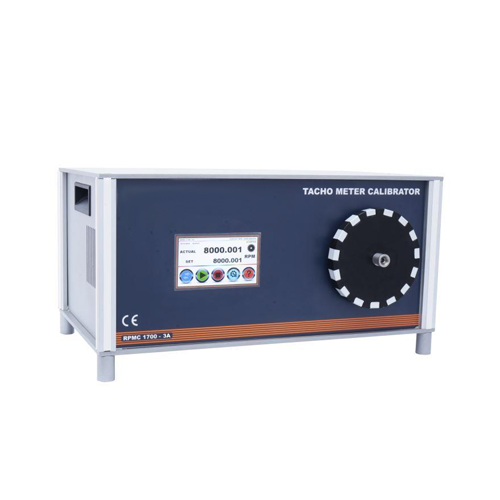

MRM-RPMC 1700-3A Tachometer Calibrator

The MRM-RPMC 1700-3A Tachometer Calibrator is a high precision instrument that generates true reference rotation per minute (RPM). This uses “German technology” with high speed motor, high precision encoder and adoption of a power full 32-bit CPU in-control drive, featuring automated gain tuning function, stability, stable stop, and rugged in use.

Due to its light weight and rugged Aluminum enclosure, it is suitable for in-house and on-site calibration of contact/non-contact Tachometer, Tacho-coil, Tacho-generator, RPM indicator, RPM transmitter, Speedometer, Proximity sensor, Stroboscope, etc.

It comes with a one-year manufacturer’s warranty.
Shop for MRM-RPMC 1700-3A Digital Tachometer Calibrator at MRM Metrology, and save.
Buy MRM-RPMC 1700-3A Tachometer Calibrator now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SKU: MRM-RPMC 1700-3A Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ High resolution
○ 7” True colour TFT display with Touch screen
○ Low noise
○ Quick settling time
○ Better stability
○ Any odd value is settable for both contact & Non – contact RPM
○ Ultra stable motor with high precision encoder and drive
○ Direct drive shaft (there is no gear)
○ Compact size

Control Range Contact: 0 to 8000 RPM , Non Contact: 0 to 1,20,000 RPM
Resolution 0.001 RPM
Accuracy Contact: ± 0.2 RPM , Non Contact: ± 5 RPM
Display Stability Contact: ± 0.002 RPM , Non Contact: ± 0.01 RPM
Stability Contact: ± 0.1 RPM , Non Contact: ± 2 RPM
Display 7” True colour TFT LCD Display with Touch screen
Stability Time Within 5 seconds
Noise Level < 50 dB
Motor Ultra stable motor with high resolution Encoder & Drive
Power Supply 230V AC ± 10% / 50Hz (Optional 110V AC)
Power Consumption 750 VA
Outer Enclosure Construction Aluminium Anodised
Weight 13 kg (Approx.)
Warranty One-year limited manufacturer’s warranty
Note: Due to continuous product improvements, Published specifications may change without notice

Dimensions (L x W x H) Approx. (260 x 440 x 230) mm

INCLUDED ITEMS
Basic Instrument
Spare fuses
Instruction Manual
Mains Card
Traceable Calibration Certificate
OPTIONAL ITEMS
Master Tachometer
Additional Reflection Stickers
Carrying case

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-RPMC 1700-3A when requesting calibration services from MRM Metrology.



Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-RPMC 1700-3A Tachometer Calibrator

For a quote, please email us at  [email protected]
