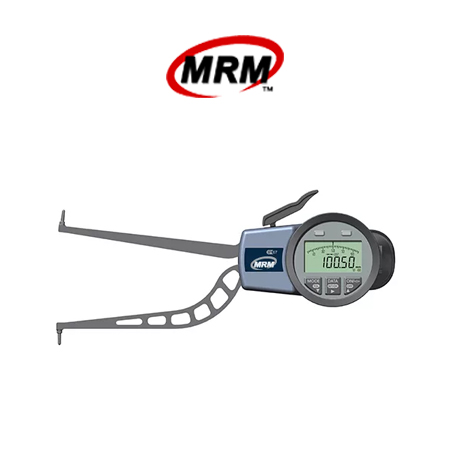

MRM-L370 Electronic Caliper Gauge

MRM-L370 Electronic Internal Caliper Gauge (70 to 100) mm

CAD 745.00

The MRM-L370 Electronic Internal Caliper Gauge is used for Internal Measurement. The caliper is spring-loaded and makes point contact at constant measuring pressure.

It comes with a two-year manufacturer’s warranty.
Shop for MRM-L370 Digital Caliper Gauge at MRM Metrology, and save.
Buy MRM-L370 Caliper Gauge now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models

SKU: MRM-L370 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Internal measurement

Range (70 to 100) mm
Resolution (0.02 , 0.05) mm
Accuracy ± 0.04 mm
Measuring Span Mes 30 mm
Range of Indication Azb (69.5 to 100.5) mm
Repeatability Limit R 0.02 mm
Measuring Force F min. 1.2 N
Measuring Force F max. 7 N
Type of Measuring Contact Movable HM-Ball Ø 2 mm
Measuring Contact Movable Hb 8.5 mm
Type of Measuring Contact Fixed HM-Ball Ø 2 mm
Measuring Contact Fixed Hf 8.5 mm
Measuring Contact Thickness Max. 2.6 mm
Measuring Depth Max. L 132 mm
Weight 375 g
Reference Temperature 20°C / (-10 to 30)°C
Storage Temperature (-10 to 50)°C
Protection Class IP67
Warranty Two years limited manufacturer’s warranty

209-948


Interface Digimatic Order no. 1961-09 + 2482-07
Interface USB Order no. 1961-09 + 2482-05
Interface U-Wave Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02
Wooden Box 410 g
Holding Unit 8004-55

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-L370 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-L370 Electronic Internal Caliper Gauge

For a quote, please email us at  [email protected]
