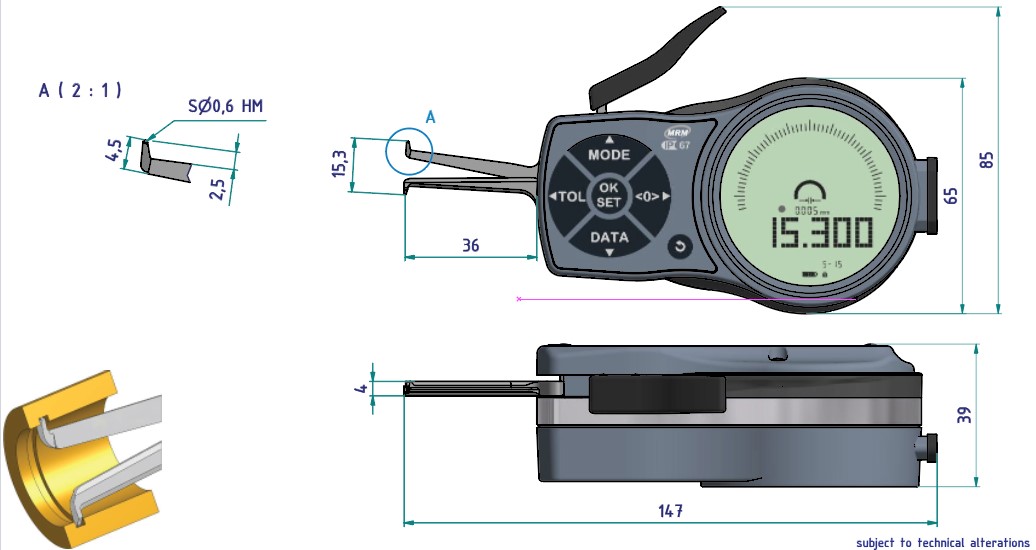

- Dimension
- Accessories
- Downloads
- Calibration
| ○ Internal measurement |
| Range | (5 to 15) mm |
| Resolution | (0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05) mm |
| Accuracy | ± 0.015 mm |
| Measuring Span Mes | 10 mm |
| Range of indication Azb | (4.7 to 15.3) mm |
| Repeatability Limit R | 0.005 mm |
| Measuring Force F min. | 0.8 N |
| Measuring Force F max. | 1.2 N |
| Type of Measuring Contact Movable | HM-Kugel Ø 0.6 mm |
| Measuring Contact Movable Hb | 2.5 mm |
| Type of Measuring Contact Fixed | HM-Kugel Ø 0.6 mm |
| Measuring Contact Fixed Hf | 2.5 mm |
| Measuring Contact Thickness Max. | 1.2 mm |
| Measuring Depth Max. L | 35 mm |
| Weight | 250 g |
| Reference Temperature | 20 °C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP67 |
| Power Supply | 2 LR03 Batteries |
| Warranty | Two years limited manufacturer’s warranty |
209-935
| Interface Bluetooth | Order no. 1961-13 |
| Interface Digimatic | Order no. 1961-09 + 2482-07 |
| Interface USB | Order no. 1961-09 + 2482-05 |
| Interface U-Wave | Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02 |
| Wooden Box | Order no. 1732-65 |
| Holding Unit | Order no. 8007-10 |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-L105 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

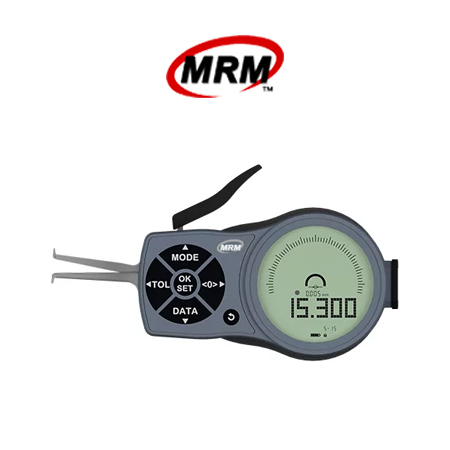

MRM-L105 Electronic Internal Caliper Gauge
For a quote, please email us at [email protected]
