Product Description
- Features
- Specifications

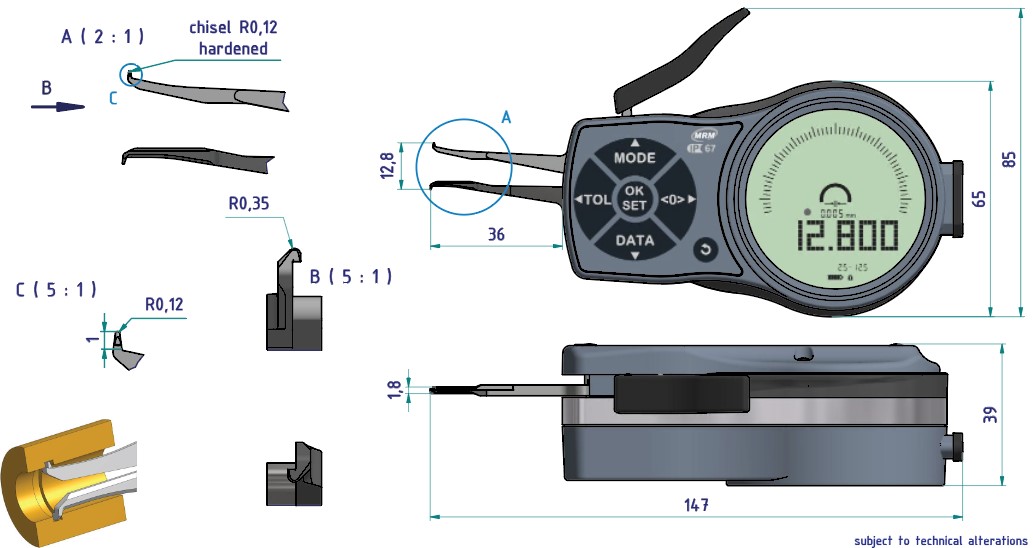

- Dimension
- Accessories
- Downloads
- Calibration
â—‹ Internal measurement |
Range | (2.5 to 12.5) mm |
Resolution | (0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05) mm |
Accuracy | ± 0.015 mm |
Measuring Span Mes | 10 mm |
Range of indication Azb | (2.4 to 12.8) mm |
Repeatability Limit R | 0.005 mm |
Measuring Force F min. | 0.8 N |
Measuring Force F max. | 1.2 N |
Type of Measuring Contact Movable | Chisel R 0.1 mm |
Measuring Contact Movable Hb | 0.9 mm |
Type of Measuring Contact Fixed | Chisel R 0.1 mm |
Measuring Contact Fixed Hf | 0.9 mm |
Measuring Contact Thickness Max. | 0.5 mm |
Measuring Depth Max. L | 12 mm |
Weight | 245 g |
Reference Temperature | 20 °C / (-10 to 30)°C |
Storage Temperature | (-10 to 50)°C |
Protection Class | IP67 |
Power Supply | 2 LR03 Batteries (AAA) |
Warranty | Two years limited manufacturer’s warranty |
209-934
Interface Bluetooth | Order no. 1961-13 |
Interface Digimatic | Order no. 1961-09 + 2482-07 |
Interface USB | Order no. 1961-09 + 2482-05 |
Interface U-Wave | Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02 |
Wooden Box | Order no. 1732-65 |
Holding Unit | Order no. 8007-10 |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-L102 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

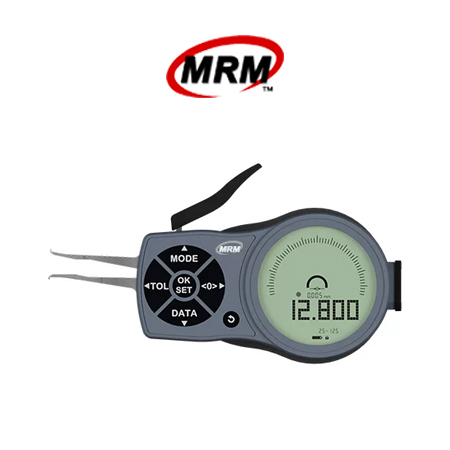

MRM-L102 Electronic Internal Caliper Gauge
For a quote, please email us at  [email protected]
