| ○ Measurement of grooves and thickness |

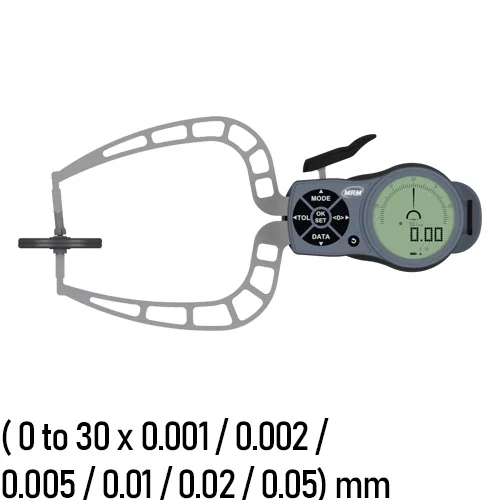

| ○ Electronic external measuring gauge |
| Measuring Range | (0 to 30) mm |
| Range of Indication Azb | (0 to 30.5) mm |
| Resolution | 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm |
| Accuracy | ± 0.06 mm |
| Repeatability Limit R | 0.04 mm |
| Measuring Force F min. | 0.9 N |
| Measuring Force F max. | 1.6 N |
| Type of Measuring Contact Movable | Flat Ø 50 mm |
| Measuring Contact Movable Hb | 36 mm |
| Type of Measuring Contact Fixed | Flat Ø 50 mm |
| Measuring Contact Fixed Hf | 24 mm |
| Measuring Depth Max. L | 114 mm |
| Weight | 430 g |
| Reference Temperature | 20 °C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP67 |
| Power Supply | 2x LR03 (AAA) |
| Manufacturer’s Warranty | Two (2) year limited manufacturer’s warranty |
209-953
| Included Items | |
| Wooden Box | Order no. 1732-71 |
| Optional Items | |
| Interface Adapter Bluetooth | Order no. 1961-13 |
| Interface Digimatic | Order no. 1961-09 + 2482-07 |
| Interface USB | Order no. 1961-09 + 2482-05 |
| Interface U-Wave | Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02 |
| Holding Unit | Order no. 8007-10 |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-K330T when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MRM-K330T Electronic Caliper Gauge
For a quote, please email us at [email protected]
