Product Description
- Features
- Specifications

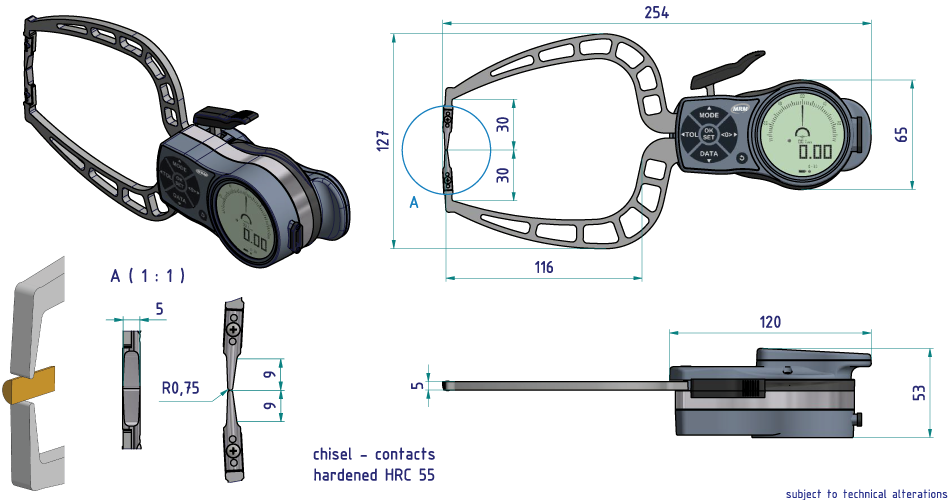

- Dimension
- Accessories
- Downloads
- Calibration
| ○ Measurement of grooves and thickness |
| ○ Electronic external measuring gauge |
| Range | (0 to 30) mm |
| Resolution | (0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05) mm |
| Accuracy | ± 0.04 mm |
| Range of Indication Azb | (0 to 30.5) mm |
| Repeatability Limit R | 0.02 mm |
| Measuring Force F min. | 0.9 N |
| Measuring Force F max. | 1.6 N |
| Measuring Contact Movable Hb | 30 mm |
| Measuring Contact Fixed Hf | 30 mm |
| Measuring Contact Thickness Max. | 4 mm |
| Measuring Depth Max. L | 116 mm |
| Weight | 430 g |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP67 |
| Power Supply | 2 LR03 Batteries (AAA) |
| Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
| Included Items | |
| Wooden Box | Order no. 1732-71 |
| Optional Items | |
| Interface Adapter Bluetooth | Order no. 1961-13 |
| Interface Digimatic | Order no. 1961-09 + 2482-07 |
| Interface USB | Order no. 1961-09 + 2482-05 |
| Interface U-Wave | Order no. 1961-09 + 2482-04 + 2482-01 + 2482-02 |
| Holding Unit | Order no. 8007-10 |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL MRM-K330S when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

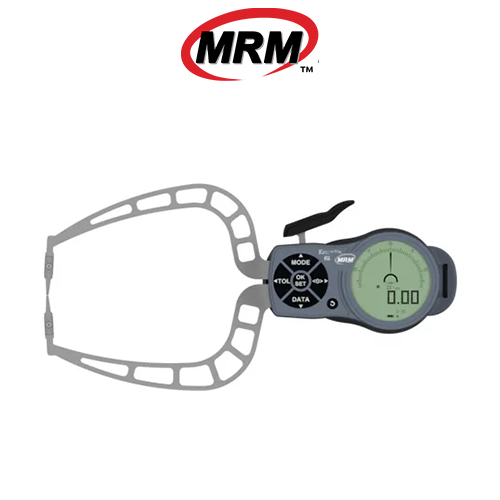

MRM-K330S Electronic External Caliper Gauge
For a quote, please email us at [email protected]
