Product Description
- Features
- Specifications
- Dimension
- Accessories
- Downloads
- Calibration
| â—‹ Measurement of grooves and thickness |

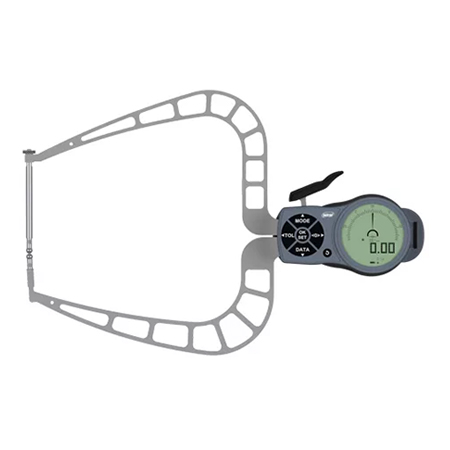

| â—‹ Electronic external measuring gauge |
| Range | (0 to 50) mm |
| Resolution | (0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05) mm |
| Accuracy | ± 0.06 mm |
| Range of Indication Azb | (0 to 50.5) mm |
| Repeatability Limit R | 0.04 mm |
| Measuring Force F min. | 0.8 N |
| Measuring Force F max. | 7 N |
| Type of Measuring Contact Movable | HM-Ball Ø 5 mm |
| Measuring Contact Movable Hb | 72.6 mm |
| Type of Measuring Contact Fixed | HM-Kugel Ø 5 mm |
| Measuring Contact Fixed Hf | 30 mm |
| Measuring Contact Thickness Max. | Ø 4 mm |
| Measuring Depth Max. L | 167 mm |
| Weight | 510 g |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP67 |
| Power Supply | 2x LR03 (AAA) |
| Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
| Included Items | Order No. |
| Wooden Box | Order no. 1732-71 |
| Optional Items | Order No. |
| Interface Adapter Bluetooth | 1961-13 |
| Interface Digimatic | 1961-09 + 2482-07 |
| Interface USB | 1961-09 + 2482-05 |
| Interface U-Wave | 1961-09 + 2482-04 + 2482-01 + 2482-02 |
| Holding Unit | 8007-10 |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-K450B when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
MRM-K450B Electronic External Caliper Gauge
For a quote, please email us at  [email protected]
